M20-9710346

Headers, Male Pins Overview

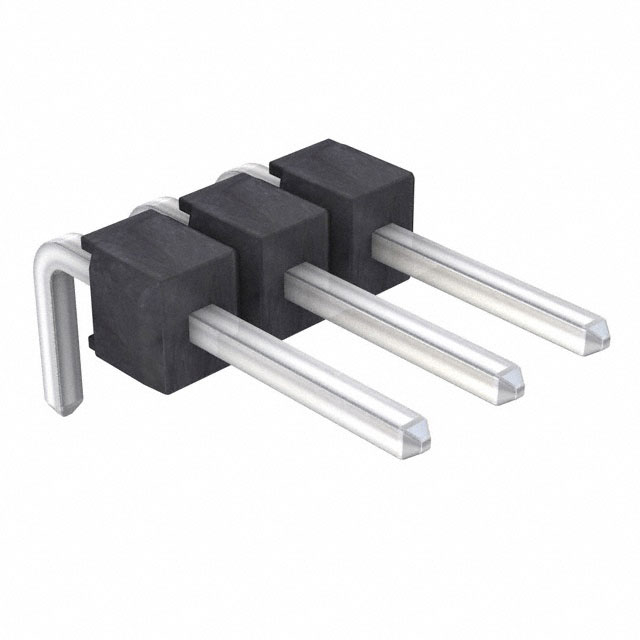

The M20-9710346 is a Harwin M20 series right-angle pin header featuring three positions with a 2.54 mm pitch. Designed for through-hole mounting, this single-row connector supports board-to-board and wire-to-board applications. It operates within a temperature range of -40°C to +105°C and carries a current rating of 3A per contact. The housing utilizes nylon material, while contacts are constructed from brass with tin plating. This component provides reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates dense PCB layout arrangements
• Through-hole termination ensures secure mechanical attachment
• Tin-plated brass contacts provide corrosion resistance

Headers, Male Pins Applications

• Embedded PC systems
• Industrial monitoring equipment
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the obsolete lifecycle status before procurement planning. Confirm availability through authorized distributors as standard stock may be limited. Ensure compatibility with mating connectors regarding pitch and row configuration. Validate that the right-angle orientation meets spatial constraints within the target enclosure design.

Headers, Male Pins Selection Notes

Select this model when right-angle connectivity is required for space-constrained designs. Verify that the 3A current rating suffices for the specific circuit load. Ensure the through-hole installation method aligns with the manufacturing process capabilities. Confirm that the 2.54 mm pitch matches the corresponding socket or cable assembly requirements.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, which establishes an industry-standard connection solution for various electronic devices. The series offers multiple configurations including single and double rows with varying pin counts. These connectors are widely recognized for their reliability in demanding industrial and commercial environments.

Headers, Male Pins Replacement Considerations

M20-9710446 serves as a potential substitute offering gold high-temperature plating instead of tin. Verify that the alternative maintains identical physical dimensions and electrical characteristics to ensure seamless integration without redesigning the printed circuit board.
