M20-9710546

Headers, Male Pins Overview

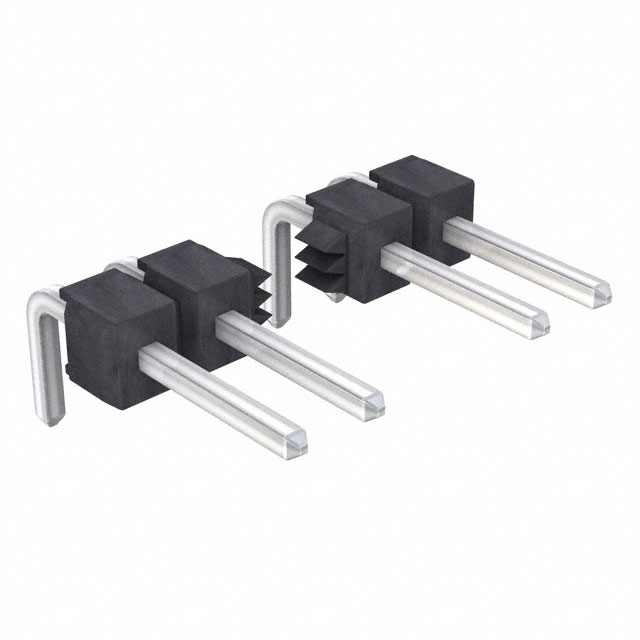

The Harwin M20-9710546 is a single-row pin header connector from the M20 series, designed for through-hole mounting. It features a 2.54 mm pitch and provides 15 positions with male pin contacts. The unit utilizes tin-plated brass terminals housed in black polyamide insulation rated UL 94 V-0. Operating within a temperature range of -40°C to +105°C, it supports a current rating of 3A per contact. The connector employs a push-pull latching mechanism and offers a mating contact length of 6.10 mm.

Headers, Male Pins Feature Summary

• Single-row configuration with secure push-pull latching mechanism
• High-temperature resistant housing constructed from UL 94 V-0 rated polyamide
• Tin-plated brass contacts ensuring reliable electrical conductivity
• Vertical board-to-board or wire-to-board interconnection capability

Headers, Male Pins Applications

• Industrial control systems requiring robust vertical connections
• Consumer electronics utilizing standard 2.54 mm spacing
• General-purpose circuit boards needing secure header interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific variant matches the required single-row, 15-position specification. Ensure compatibility with existing PCB layouts regarding hole dimensions and row alignment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, vertically oriented header is required for 2.54 mm pitch applications. The M20-9710546 is suitable for environments demanding high thermal stability due to its V-0 rated insulation. Consider the push-pull locking feature if vibration resistance is necessary without additional mechanical fasteners.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, which specializes in versatile rectangular connectors. The series includes various configurations such as double-row jackscrew headers and single-row variants. The M20-9710546 specifically addresses needs for simple, reliable vertical interconnects with standardized spacing.

Headers, Male Pins Replacement Considerations

Consult official Harwin catalogs for direct substitutes within the M20 family. Verify equivalent specifications including pin count, pitch, and termination style before considering alternative manufacturers.
