M20-9720445

Headers, Male Pins Overview

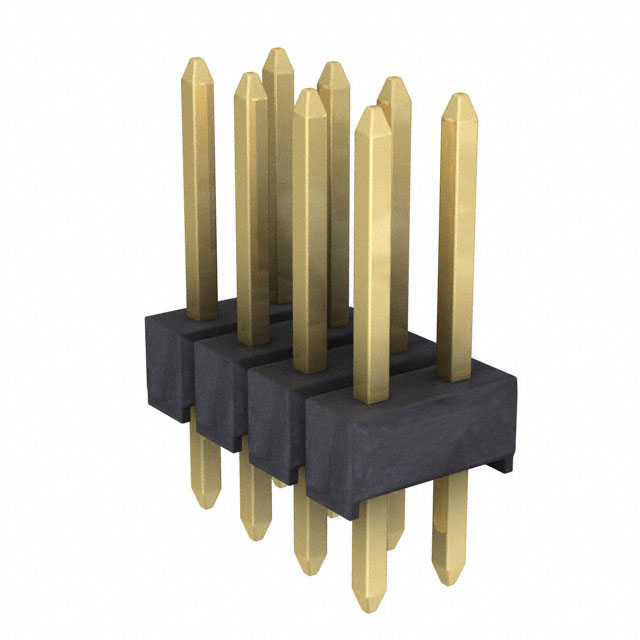

The M20-9720445 is a male pin header from the Harwin M20 series, designed for board-to-board and wire-to-board connections. It features an 8-position configuration with a 2.54 mm (0.1 in) pitch across two rows. The connector utilizes through-hole solder pin termination for secure PCB mounting. Contact plating is gold over nickel to ensure reliable conductivity and corrosion resistance. The housing is constructed from black nylon, providing structural integrity and electrical insulation. This component supports a maximum operating temperature of +105°C and a minimum of -40°C, suitable for standard industrial environments.

Headers, Male Pins Feature Summary

• Dual-row male pin strip design for high-density interconnects
• Gold-plated brass contacts for enhanced signal reliability
• Nylon housing material offering thermal stability and insulation

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly applications
• Industrial control circuitry
• Electronic instrumentation modules

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against the official datasheet before integration. Confirm that the gold plating specification meets the required environmental durability standards for the target application. Ensure the through-hole footprint matches the printed circuit board layout constraints. Check for any RoHS compliance documentation if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a compact dual-row male header is required for rigid board connections. The 2.54 mm pitch allows compatibility with standard breadboard and prototyping systems. Consider the current rating and voltage limits specified in the technical data sheet relative to the load requirements. Evaluate the mechanical retention strength provided by the solder pin termination method.

Headers, Male Pins Part Context

This part belongs to the M20 series of connectors manufactured by Harwin Inc. The series is characterized by its robust construction and versatile mounting options. The M20-9720445 specifically addresses needs for low-profile, high-reliability connections in space-constrained electronic assemblies. It complements other components within the same family that offer varying position counts and orientations.

Headers, Male Pins Replacement Considerations

M20-9720446
