M20-9730245

Headers, Male Pins Overview

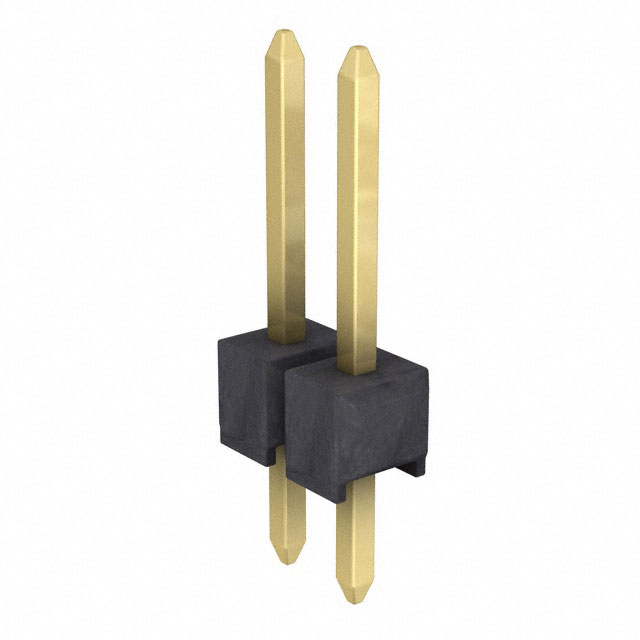

The Harwin M20-9730245 is a single-row, vertical pin header connector from the M20 series. It features a 2.54 mm pitch and two contacts with brass terminals plated in gold. Designed for through-hole mounting, it utilizes a black nylon housing. The component supports board-to-board and wire-to-board connections, rated for 3 A current and 750 V voltage. Operating temperatures range from -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical orientation with straight through-hole termination
• Gold-plated brass contacts for reliable conductivity
• Black nylon insulation housing

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check for any RoHS compliance details or end-of-life status directly from the manufacturer before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-contact-count, vertical header is required. The gold plating offers corrosion resistance suitable for general applications. Verify that the 2.54 mm pitch matches the PCB layout and mating interface requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series of headers and wire housings. The series provides various configurations for standard spacing needs. This specific model represents a minimal contact option within the vertical pin header category.

Headers, Male Pins Replacement Considerations

M20-9730246 is listed as a potential substitute in distributor records.
