M20-9730246

Headers, Male Pins Overview

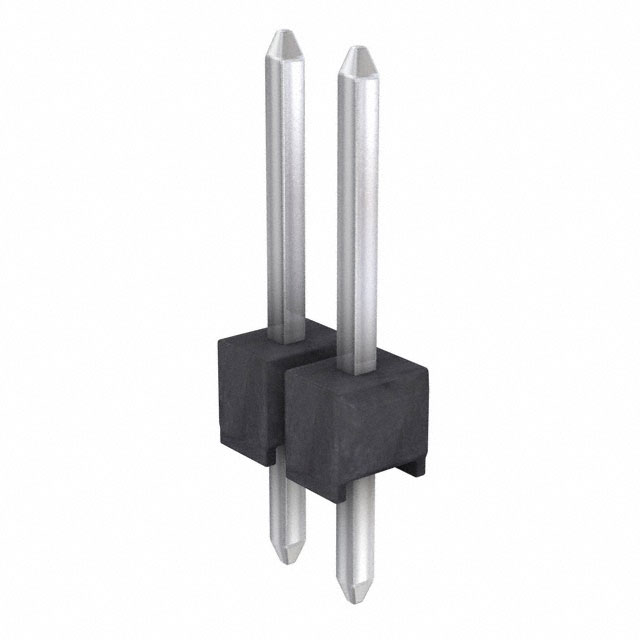

The Harwin M20-9730246 is a single-row, vertical pin header assembly from the M20 series. It features a 2.54 mm pitch and provides two contact positions. The component utilizes through-hole solder termination with a straight mounting angle. Contacts are brass with tin plating, housed in black nylon insulation. It supports a current rating of 3 A and a voltage rating of 750 V. Operating temperature ranges from -40°C to 105°C.

Headers, Male Pins Feature Summary

• Single row vertical configuration for board-to-board or board-to-wire connections
• Tin-plated brass contacts ensure reliable conductivity within nylon housing
• Through-hole straight solder tail design facilitates standard PCB assembly processes

Headers, Male Pins Applications

• General electronic interconnects requiring low-profile vertical headers
• Industrial control systems utilizing standard 2.54 mm spacing
• Consumer electronics assemblies needing robust single-row connections

Headers, Male Pins Procurement Notes

Verify component authenticity against Harwin official documentation before integration. Confirm that the specific tin-plated variant matches system requirements. Check for end-of-life status as some M20 variants face obsolescence. Ensure PCB footprint aligns with the specified through-hole dimensions. Validate environmental compliance data if required by target market regulations.

Headers, Male Pins Selection Notes

Select this part when a two-position vertical header is necessary. The 2.54 mm pitch ensures compatibility with standard wire harnesses and mating connectors. Tin plating offers cost-effective performance for non-corrosive environments. Consider the 3 A current rating for power distribution needs. Verify mechanical stability requirements for the straight mounting style.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, designed for high-density interconnect applications. The series emphasizes reliability and compact form factors. The M20-9730246 specifically addresses low-count connection needs within this lineup. It complements other M20 variants offering different row counts and orientations.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M20 series headers with identical 2.54 mm pitch and 2-position count. Verify matching termination type and mounting orientation. Cross-reference electrical ratings to ensure equivalent performance. Consult Harwin official databases for updated availability of similar configurations.
