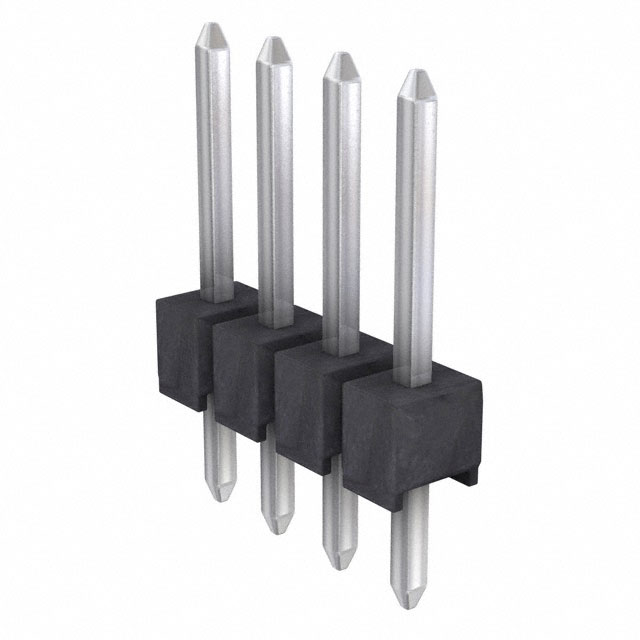

M20-9730446

$0.17

Description：CONN HEADER VERT 4POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk

SKU:e2bca8cd03c8 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-9730446 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-9730446

Description：CONN HEADER VERT 4POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.276" (7.00mm)
Contact Length - Post：0.122" (3.10mm)
Overall Contact Length：0.496" (12.60mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-9730446

M20-9730446

Headers, Male Pins Overview

The M20-9730446 is a single-row male pin header from the Harwin M20 series, designed for board-to-board and wire-to-board connections. It features a 2.54 mm pitch with four contacts and utilizes through-hole straight mounting. The connector system employs brass contacts with tin plating and a nylon housing. Rated for 3 A current and 500 V voltage, it operates within a temperature range of -40°C to +105°C. The component includes 3 mm tail pins and 7 mm mating pin height.

Headers, Male Pins Feature Summary

Supports reliable board-to-board and wire-to-board interconnections via a standardized 2.54 mm pitch interface.
Ensures secure mechanical attachment through a straight, vertical through-hole mounting configuration.
Provides durable electrical performance using tin-plated brass contacts housed in a robust nylon body.

Headers, Male Pins Applications

Board-to-board signal transmission
Wire-to-board connectivity
General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number M20-9730446 against official Harwin documentation to confirm availability and technical specifications. Ensure compatibility with target PCB layouts and mating connectors before procurement. Cross-reference datasheets for environmental ratings and material composition to validate suitability for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct board interconnection. The 2.54 mm pitch ensures broad compatibility with standard PCB footprints. Consider the through-hole termination method for applications requiring high mechanical stability and reliable solder joints under thermal stress.

Headers, Male Pins Part Context

This component belongs to the M20 series, a line of headers and wire housings manufactured by Harwin. The series is characterized by its compact design and versatile mounting options, catering to various electronic assembly needs. The M20-9730446 specifically represents a four-position variant within this family, offering a balance between density and ease of use.
