M20-9750242

Headers, Male Pins Overview

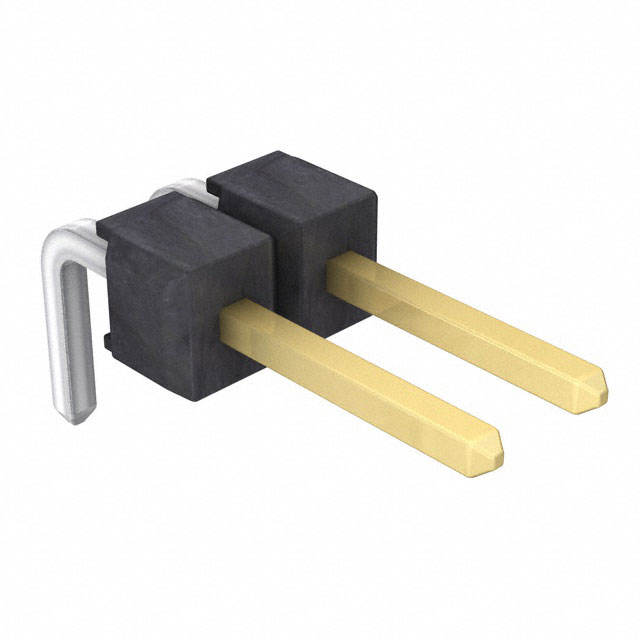

The Harwin M20-9750242 is a single-row male pin header connector from the M20 series, featuring a 2.54 mm (0.1 inch) pitch. Designed for through-hole mounting, it offers a right-angle configuration to facilitate compact circuit board layouts. The component utilizes gold and tin plating on brass contacts to ensure reliable signal transmission and corrosion resistance. It supports a mating pin length of 5.8 mm and is engineered for robust performance in industrial environments.

Headers, Male Pins Feature Summary

• Right-angle orientation enables space-efficient PCB routing
• Gold and tin contact plating ensures durable conductivity
• Compatible with standard hand cutting tools for custom lengths

Headers, Male Pins Applications

• Industrial factory equipment connections
• Data collection system interfaces
• Mobile maintenance tool interconnects

Headers, Male Pins Procurement Notes

Verify the specific contact count and plating specification against the official datasheet before procurement. Ensure the right-angle footprint matches the target PCB design constraints. Confirm compatibility with mating sockets within the M20 series to guarantee proper mechanical engagement and electrical continuity.

Headers, Male Pins Selection Notes

Select this model when a right-angle through-hole connection is required for dense packaging. Consider the 2.54 mm pitch for standard digital signal applications. Evaluate the need for cuttable lengths if variable pin counts are necessary across different production batches or prototypes.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, which adheres to standard conventions for pin header and socket systems. The series is widely utilized in industrial automation and data acquisition sectors due to its reliability and standardized 2.54 mm spacing, ensuring broad interoperability with other industry-standard connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, right-angle orientation, and through-hole termination style. Verify that alternative manufacturers offer compatible gold/tin plating and matching housing dimensions to ensure seamless integration without mechanical interference.
