M20-9750542

Headers, Male Pins Overview

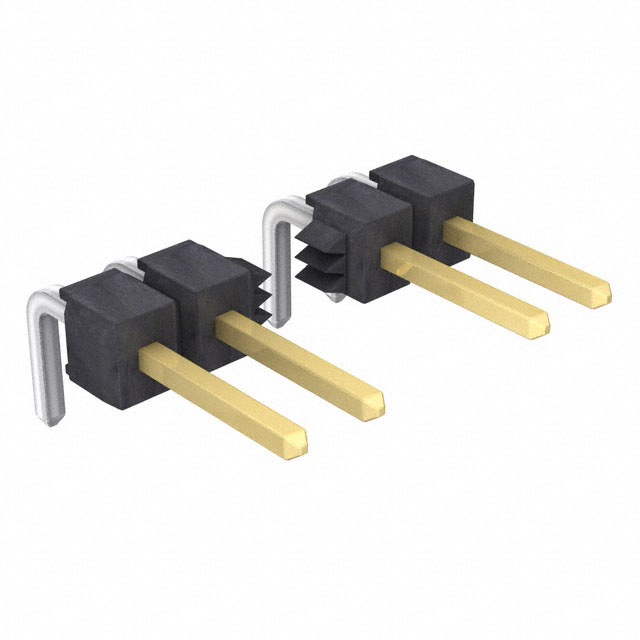

The M20-9750542 is a rectangular connector header from the Harwin M20 series, designed for board-to-board and wire-to-board applications. It features a single row of five male pin contacts with a 2.54 mm pitch. The component utilizes a right-angle mounting style for surface installation, allowing for compact PCB layouts. Contacts are constructed from brass with gold plating to ensure reliable signal transmission. The housing is made of nylon, providing structural integrity and electrical insulation.

Headers, Male Pins Feature Summary

• Right-angle design facilitates space-efficient vertical connections on printed circuit boards.
• Gold-plated brass contacts provide durable conductivity and corrosion resistance.
• Nylon housing offers robust mechanical support and electrical isolation.

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Wire-to-board connections requiring angled entry points
• Industrial control modules with limited vertical clearance

Headers, Male Pins Procurement Notes

Verify current manufacturing status as this part may be obsolete. Confirm compatibility with mating connectors regarding contact geometry and housing dimensions. Ensure soldering parameters align with the thermal characteristics of the gold-plated brass contacts and nylon insulation to prevent damage during assembly processes.

Headers, Male Pins Selection Notes

Select this component when right-angle connectivity is required for a five-position interface. Consider the 2.54 mm pitch standard for broader ecosystem compatibility. Evaluate the surface mount orientation against available board space constraints. Verify that the gold plating meets the specific environmental durability requirements of the target application environment.

Headers, Male Pins Part Context

This connector belongs to the M20 series, known for high-density interconnect solutions. The M20 family supports various configurations including straight and right-angle options across multiple row counts. This specific model represents a specialized variant optimized for angular mounting scenarios within the broader rectangular connector portfolio.

Headers, Male Pins Replacement Considerations

M20-9750546 is listed as an available substitute. Verify pin count, pitch, and mounting angle compatibility before substitution. Ensure the alternative maintains equivalent electrical ratings and housing material specifications for direct replacement without redesign.
