M20-9760246

Headers, Male Pins Overview

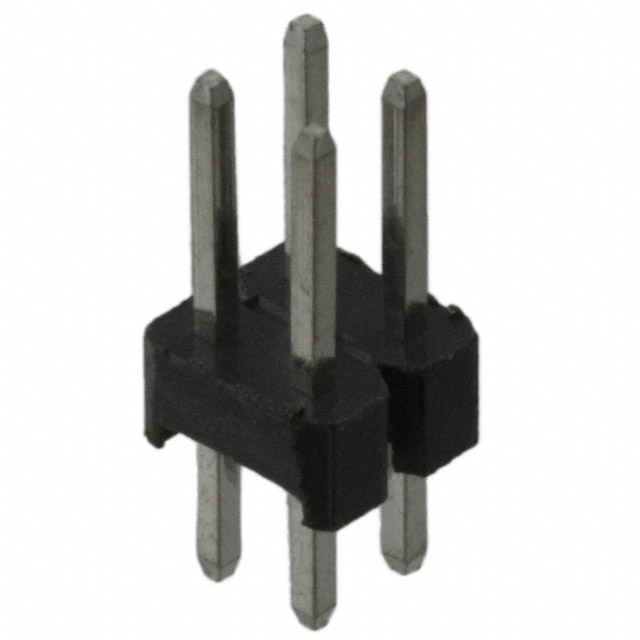

The M20-9760246 is a male pin header from the Harwin M20 series, designed for through-hole mounting. It features a dual in-line (DIL) configuration with two rows and four positions, providing a total of four contacts. The connector utilizes a 2.54 mm (0.1 inch) pitch and is constructed with a black nylon insulation body rated UL94 V-0 for flammability. Electrical specifications include a current rating of 3 A per contact and an operating temperature range of -40°C to 105°C. The terminals are tin-plated copper alloy pins intended for vertical board insertion.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for secure PCB integration
• Dual in-line layout offering compact multi-contact connectivity
• Tin-plated contacts ensure reliable mating surface performance
• Black nylon housing provides UL94 V-0 flame retardant protection

Headers, Male Pins Applications

• General electronic circuit interconnections
• Prototype development boards
• Industrial control module interfaces
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status, as distribution channels may vary. Ensure that the required lead times align with production schedules, noting that standard manufacturing timelines may apply. Confirm compliance requirements such as RoHS status if applicable to your project specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical DIL header is required for space-constrained designs. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the 3 A current rating and thermal limits when designing for high-power applications. Verify that the through-hole termination method matches the target PCB fabrication capabilities.

Headers, Male Pins Part Context

This component belongs to the Harwin M20 series, a widely recognized family of board-to-board and wire-to-board connectors. The M20 line emphasizes reliability and precision engineering for various industrial and commercial applications. As a male pin header, it serves as the counterpart to female socket connectors, facilitating modular system design and easy assembly processes in electronic manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same pitch and configuration include other Harwin M20 series variants with matching row and position counts. Cross-brand replacements must match the 2.54 mm pitch, vertical orientation, and dual-row structure to ensure mechanical fit. Always verify electrical ratings and material compatibility before substituting.
