M20-9760342

Headers, Male Pins Overview

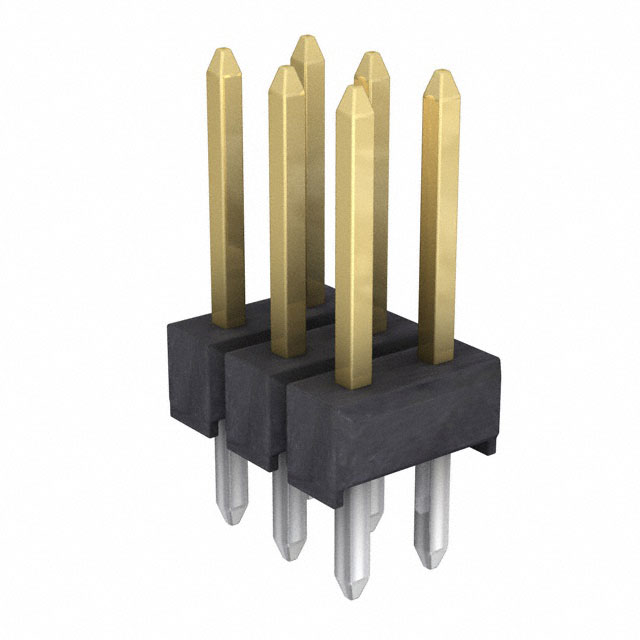

The Harwin M20-9760342 is a male pin header connector from the M20 series, featuring a 2.54 mm pitch and 6 positions arranged in two rows. Designed for through-hole mounting, it utilizes brass contacts with gold plating to ensure reliable signal transmission. The unit operates within a temperature range of -40°C to 105°C and supports board-to-board or wire-to-board systems.

Headers, Male Pins Feature Summary

• Unshrouded design facilitates compact vertical integration
• Gold-plated brass contacts provide corrosion resistance
• Thermoplastic housing ensures structural stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before procurement. Confirm that the through-hole termination style matches the target PCB fabrication capabilities. Ensure the unshrouded configuration aligns with spatial constraints and mating requirements.

Headers, Male Pins Selection Notes

Select this component when a low-profile, unshrouded male header is required for vertical mounting. The 2.54 mm pitch offers standard compatibility with common mating connectors. Consider the gold plating for environments requiring enhanced conductivity and durability compared to tin alternatives.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, which provides versatile interconnect solutions. The M20-9760342 specifically addresses applications needing a 6-position male header with through-hole termination. It complements other M20 variants offering different row counts and mounting styles.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
