M20-9760442

$0.32

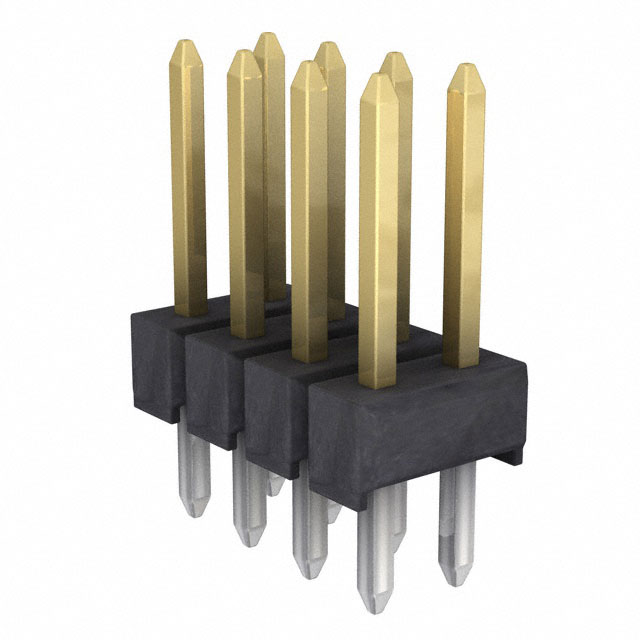

Description：CONN HEADER VERT 8POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk

SKU:a34be382aa95 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M20-9760442 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M20-9760442

Description：CONN HEADER VERT 8POS 2.54MM
Series：M20
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.228" (5.80mm)
Contact Length - Post：0.122" (3.10mm)
Overall Contact Length：0.452" (11.48mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M20-9760442

M20-9760442

Headers, Male Pins Overview

The Harwin M20-9760442 is a vertical through-hole rectangular header connector from the M20 series. It features 8 positions arranged in a dual inline (DIL) configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated contacts and is designed for board-to-board or cable applications. Rated at 3A per contact and 250V, it operates within a temperature range of -40°C to 105°C. The housing is constructed from black polyamide (PA6T), ensuring UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

Vertical through-hole mounting style for secure PCB integration
Dual inline layout providing compact signal routing
Gold-plated contacts for reliable conductivity and corrosion resistance

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm pin count and plating specifications. Ensure compatibility with mating sockets regarding stacking height and insulation voltage. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring vertical through-hole headers with high reliability. Consider the 2.54mm pitch for standard spacing requirements. Evaluate thermal limits when operating near maximum temperatures to maintain current-carrying capacity margins.

Headers, Male Pins Part Context

This part belongs to the Harwin M20 series, a family of connectors known for robust performance in demanding environments. The series offers various configurations including surface mount and through-hole options, catering to diverse industrial and commercial electronics needs.
