M20-9770342

Headers, Male Pins Overview

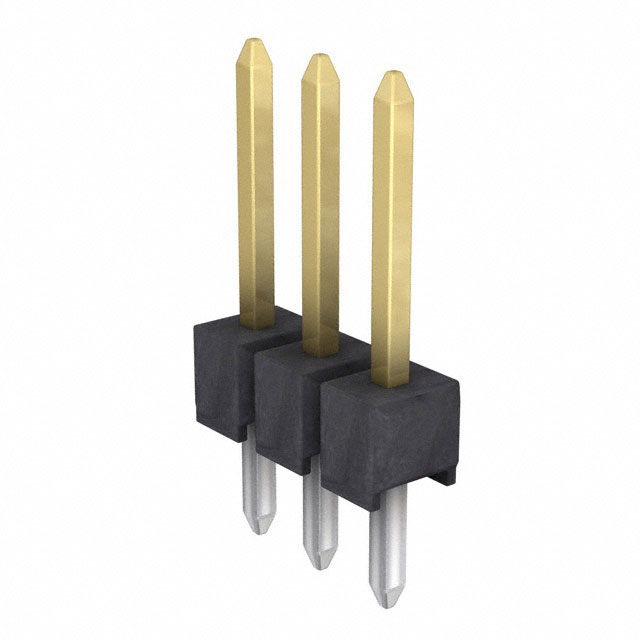

The Harwin M20-9770342 is a vertical pin header connector from the M20 series, designed for through-hole mounting. It features a single row with three positions and a 2.54mm (0.100 inch) pitch. The connector utilizes brass contacts with gold plating for reliable signal transmission. It has an unshrouded design suitable for board-to-board or wire-to-board applications. The unit operates within a temperature range of -40°C to 105°C and supports a rated current of 3A per contact.

Headers, Male Pins Feature Summary

• Vertical straight orientation for compact PCB integration
• Gold-plated brass contacts ensure stable electrical performance
• Unshrouded design allows flexible mating configurations

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm the single-row configuration and gold-plated contact finish. Ensure compatibility with standard 2.54mm mating systems. Check for any recent product lifecycle updates or alternative sourcing options if availability is constrained.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole assembly. The 2.54mm pitch ensures broad compatibility with standard connectors. Consider the unshrouded design for applications where space is limited and mechanical retention is provided by the mating system.

Headers, Male Pins Part Context

This connector belongs to the Harwin M20 series, which provides a range of high-density interconnect solutions. The series is known for its reliability in demanding environments. The M20-9770342 specifically addresses needs for small-form-factor electronics requiring robust vertical connectivity.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position, 2.54mm pitch, single-row vertical pin headers with through-hole termination. Verify that replacement parts match the current rating, temperature range, and contact material specifications.
