M20-9970345

Headers, Male Pins Overview

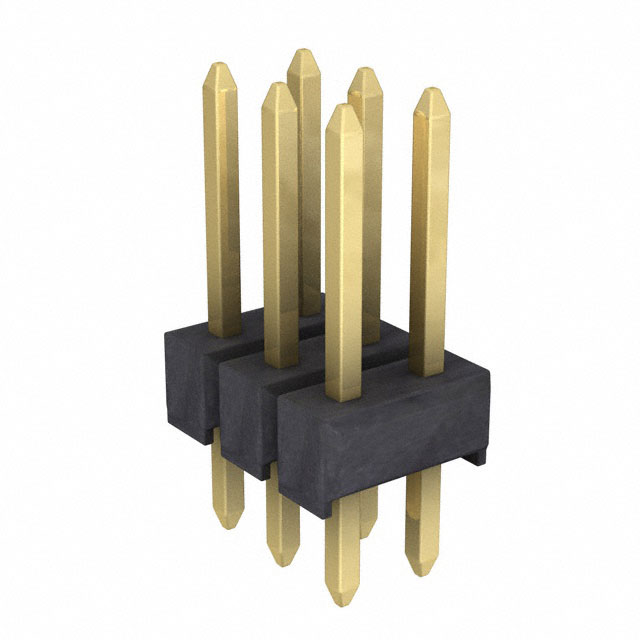

The Harwin M20-9970345 is a vertical pin header connector from the M20 series, designed for board-to-board or cable applications. It features a 6-position configuration with a 2.54mm pitch and dual-row arrangement. The connector utilizes gold-plated brass contacts and a black polyamide (PA6T) insulation rated UL94 V-0. It supports through-hole termination and operates within a temperature range of -40°C to 105°C, carrying a 3A current rating per contact.

Headers, Male Pins Feature Summary

• Dual-row vertical pin header design for compact board-to-board interconnects
• Gold-plated brass contacts ensure reliable signal transmission
• Polyamide (PA6T) insulation provides high thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board connections in electronic assemblies
• Cable-to-board interconnections
• General-purpose electronic circuitry requiring reliable vertical headers

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability and lead times. Ensure that the required quantity matches the manufacturer's standard packaging specifications. Cross-reference the datasheet for any recent updates regarding compliance standards or material changes before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a dual-row, vertical header with a 2.54mm pitch is required. The M20-9970345 is suitable for applications needing through-hole mounting and gold-plated contacts for corrosion resistance. Consider the 3A current rating and operating temperature range to ensure compatibility with the system's electrical and thermal requirements.

Headers, Male Pins Part Context

This connector belongs to the Harwin M20 series, which offers a range of pin headers and wire housings. The M20 series is known for its versatility in various electronic applications, providing options for different row counts, pitches, and termination styles. The M20-9970345 specifically addresses needs for dual-row vertical configurations.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for confirmed substitute part numbers. Verify mechanical dimensions, electrical ratings, and pin compatibility before considering alternative components from other manufacturers.
