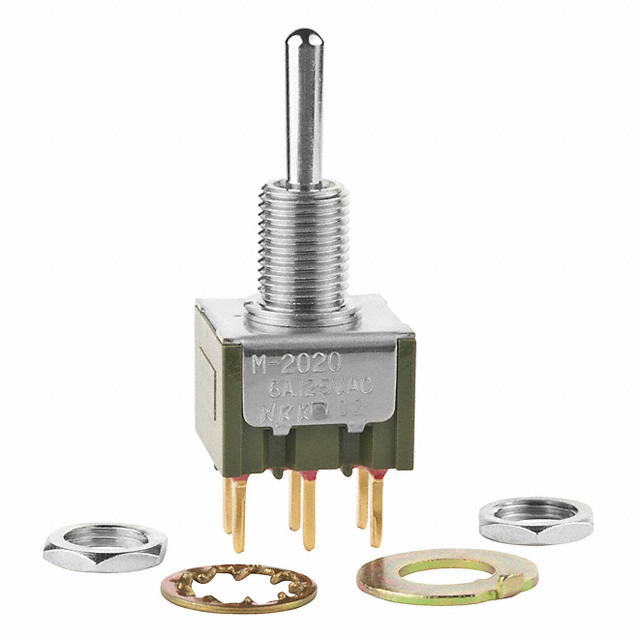

M2024SS1A03 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SP3T 6A 125V. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for M2024SS1A03
- Description：SWITCH TOGGLE SP3T 6A 125V
- Series：M
- Mfr：NKK Switches
- Package：Bulk
- Mounting Type：Panel Mount
- Circuit：SP3T
- Switch Function：On-On-On
- Current Rating (Amps)：6A (AC), 3A (DC)
- Voltage Rating - AC：125 V
- Voltage Rating - DC：30 V
- Actuator Type：Standard Round
- Actuator Length：10.50mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：PC Pin
- Panel Cutout Dimensions：Circular - 6.50mm Dia
- Bushing Thread：1/4-40
- Ingress Protection：-
- Features：Jumper needed to achieve triple throw
- Operating Temperature：-30°C ~ 85°C
Toggle Switches datasheet and documents for M2024SS1A03
