M210028BPN 320.000000

Overview

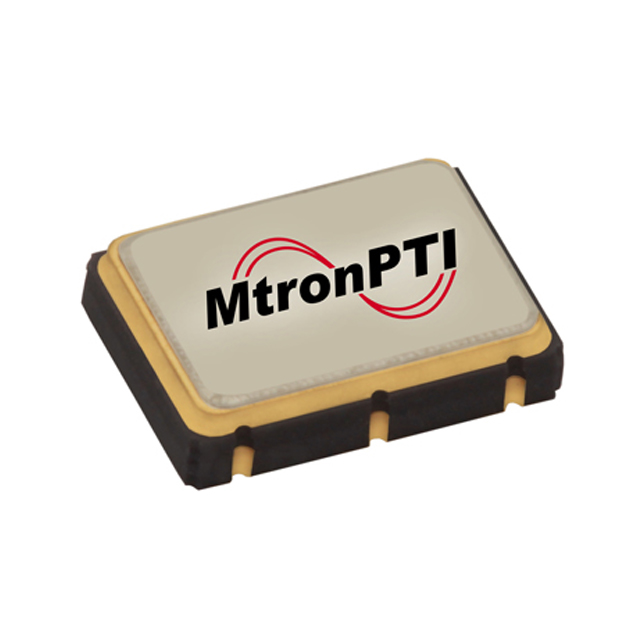

The M210028BPN is a 320 MHz crystal oscillator from the MtronPTI M210x series, housed in a 9-SMD package measuring 5x7 mm with a maximum seated height of 1.95 mm. It operates on a 3.3V supply and features an LVPECL output interface. The device includes an enable/disable function for power management. Frequency stability is rated at ±20 ppm, and it supports an operating temperature range of -40°C to 85°C. The component is RoHS compliant and designed for surface mount applications.

Feature Summary

• Features an LVPECL output interface for high-speed clock distribution.
• Includes an enable/disable control function for power management.
• Designed with ESD protection utilizing human-body model and charged-device model testing standards.

Applications

• High-performance computing systems requiring precise clock signals.
• Telecommunications infrastructure equipment.
• Test and measurement instruments.

Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against your circuit design before procurement. Confirm that the LVPECL output voltage levels are compatible with the receiving logic inputs. Ensure the 9-SMD footprint dimensions align with your PCB layout constraints. Check for any specific handling instructions regarding ESD sensitivity during assembly processes.

Selection Notes

Select this component when a 320 MHz clock signal with LVPECL outputs is required. Consider the ±20 ppm stability rating for timing accuracy needs. Evaluate the -40°C to 85°C operating range against environmental conditions. The enable/disable feature is beneficial for power-sensitive designs requiring clock gating capabilities.

Part Context

This part belongs to the M210x series of ultra-low jitter oscillators introduced by MtronPTI. The series is characterized by high performance and low jitter solutions suitable for demanding digital applications. The M210028BPN specifically utilizes a 320 MHz fundamental frequency within this family.

Replacement Considerations

Consult official MtronPTI documentation for direct pin-compatible substitutes within the M210x series. Verify electrical parameters such as output voltage swing and current consumption when considering alternative models.

FAQ

What is the output format of the M210028BPN?

The M210028BPN provides an LVPECL (Low Voltage Positive Emitter Coupled Logic) output format.

Does the M210028BPN support power control?

Yes, the component includes an enable/disable function to control the oscillator's operation state.
