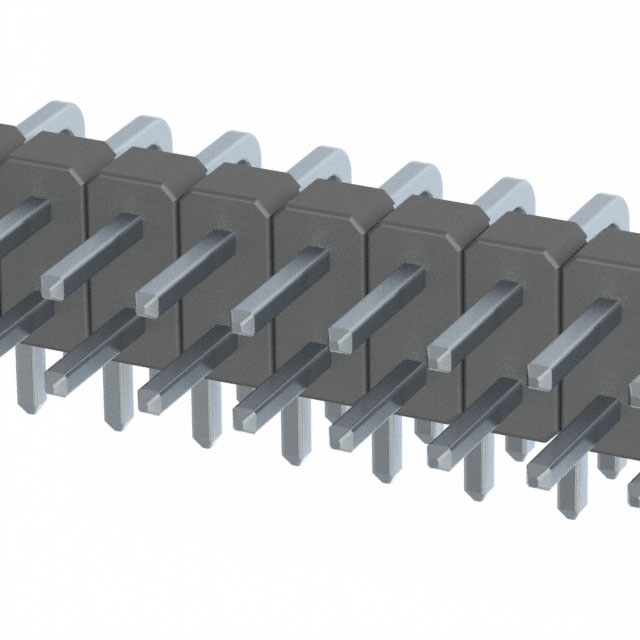

M22-2042046

Description：CONN HEADER R/A 40POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:9d805a0ae024 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2042046 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 40POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2042046

Description：CONN HEADER R/A 40POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2042046

M22-2042046

Headers, Male Pins Overview

The Harwin M22-2042046 is a dual in-line pin header from the M22 series, designed for board-to-board connections. It features 20 positions with a 2 mm pitch and 2 rows. The connector utilizes tin-plated phosphor bronze contacts and a black nylon housing. Rated for 1 A current and 650 VAC voltage, it operates between -40°C and +105°C. This right-angle, through-hole component has a UL 94 V-0 flammability rating and an insulation resistance of 1 GOhm.

Headers, Male Pins Feature Summary

Dual row configuration with 2 mm spacing for high-density mounting
Right-angle through-hole solder termination for secure PCB attachment
Tin-plated phosphor bronze contacts ensuring reliable conductivity
Black nylon housing providing UL 94 V-0 flame retardancy

Headers, Male Pins Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment signal routing
General purpose electronic assemblies
Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact plating and orientation details. Ensure compatibility with mating receptacles regarding pitch and row alignment. Check for RoHS compliance status if required by project specifications. Confirm availability as distribution data may vary. Validate thermal ratings against operational environment requirements before integration.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header with 2 mm pitch is required. It suits applications needing 20 positions with through-hole mounting. Consider the 1 A current rating and 650 VAC voltage limits for circuit design. The tin-plated contacts offer cost-effective performance for general use. Verify mechanical fit within the enclosure constraints due to the right-angle profile.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, known for compact rectangular connectors. The series offers various configurations including single and dual rows. The M22-2042046 specifically addresses needs for horizontal or vertical headers with precise 2 mm spacing. It complements other M22 family components for complete system interconnect solutions.
