M252542

Overview

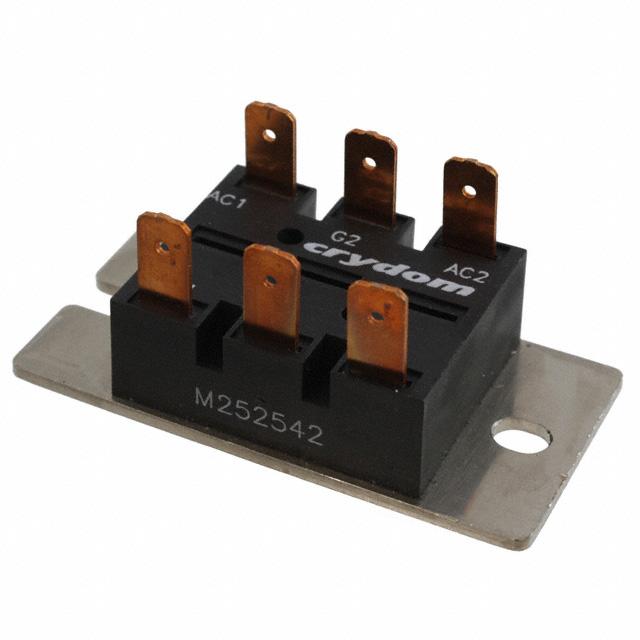

The M252542 is a discrete semiconductor module manufactured by Sensata-Crydom, classified under SCR-Diode Modules. It utilizes Silicon technology and belongs to the PGFM series. The component functions as a one-phase controller featuring all SCRs with two SCRs integrated into the structure. Key electrical ratings include a 600 V off-state voltage and a 2.5 V gate trigger voltage. The module supports a power rating of 25A at 600V AC switch capability.

Feature Summary

• Integrates two SCRs for one-phase control applications
• Utilizes Silicon technology for robust performance
• Designed as a discrete semiconductor module

Applications

• One-phase power control systems
• Industrial switching applications requiring 25A capacity
• AC switch modules operating up to 600V

Procurement Notes

Verify part authenticity through authorized distributors or official Sensata-Crydom channels. Confirm RoHS compliance status via current datasheets. Check for obsolete status indicators as some sources list this model as discontinued. Ensure technical specifications match system requirements before procurement.

Selection Notes

Select this module for single-phase applications requiring high voltage isolation. Consider the 600V off-state rating for suitable circuit protection. Evaluate the 25A current capacity against load demands. Verify compatibility with existing thermal management solutions due to power dissipation characteristics.

Part Context

This component falls within the Crydom line of solid-state relays and discrete modules. It represents a specialized power switching solution distinct from standard relay types. The module integrates multiple semiconductor elements for enhanced control capabilities in industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in verified documentation. Consult manufacturer catalogs for direct replacements if this specific model is unavailable.
