M25PX80-VMP6TGAA TR

Memory IC Overview

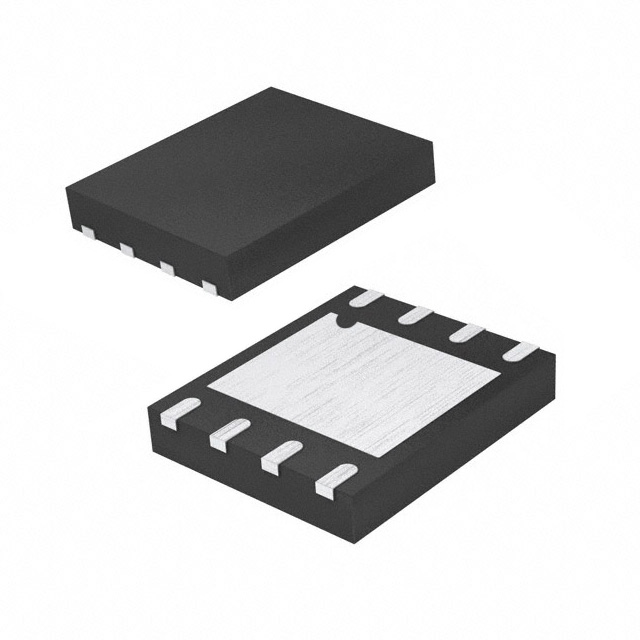

The M25PX80-VMP6TGAA TR is an 8 Mbit (1M x 8) serial Flash memory component manufactured by Micron Technology Inc. It operates on a single 2.7 V to 3.6 V supply and features a synchronous SPI bus interface with a maximum clock frequency of 75 MHz. The device provides 1,048,576 words of storage in an 8-pin HVSON package measuring 6 mm by 5 mm. It supports page programming up to 256 bytes and sector erasure of 512 Kbit. The operational temperature range extends from -40 °C to +85 °C.

Memory IC Feature Summary

• Hardware write protection defined by three non-volatile bits
• Deep power-down mode for low current consumption
• Electronic signatures including unique ID code

Memory IC Applications

• Embedded systems requiring non-volatile data storage
• Industrial IoT solutions
• Aerospace systems

Memory IC Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging configuration. Confirm the 'VMP6TGAA' designation matches the required 8-pin HVSON package dimensions and RoHS compliance status. Ensure the manufacturer source is explicitly Micron or Numonyx as per historical branding records. Validate that the component meets the specified voltage and temperature ranges for your design environment.

Memory IC Selection Notes

Select this component when a compact 8 Mbit capacity is required for synchronous SPI applications. It is suitable for designs needing hardware write protection and low standby current. Consider the 8-pin HVSON package constraints for PCB layout. Verify compatibility with host controllers supporting standard SPI protocols at frequencies up to 75 MHz.

Memory IC Part Context

This part belongs to the M25P series of low-voltage serial Flash memories. It shares functional similarities with other devices in the family but is distinguished by its specific package type and pinout. The product line is designed for cost-effective, high-density storage in space-constrained electronic devices.

Memory IC Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference tools should be used to identify compatible alternatives based on pinout and electrical specifications.
