M2GL010-TQ144I

Field Programmable Gate Array Overview

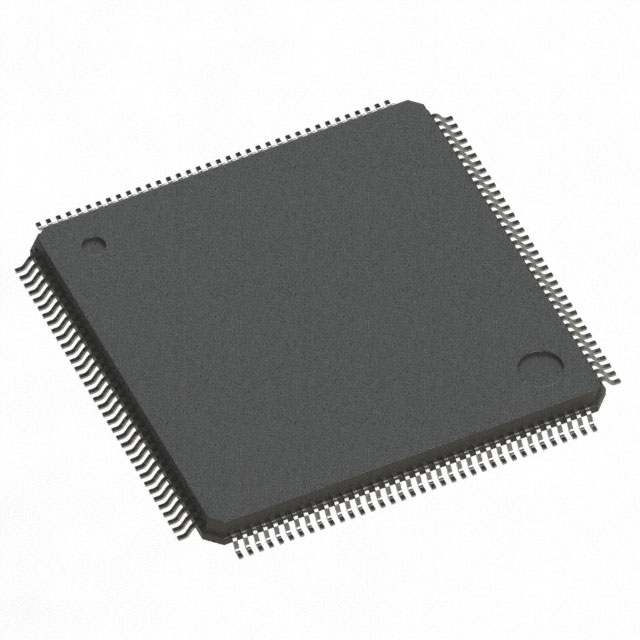

The M2GL010-TQ144I is a Field Programmable Gate Array belonging to the IGLOO2 family, manufactured by Microchip Technology. It features 12,084 logic elements and 912 kbit of embedded memory within a TQFP-144 package. The device operates with a nominal supply voltage of 1.2 V, ranging from 1.14 V to 1.26 V. It supports data rates up to 667 Mb/s and includes two transceivers. The component is rated for an operating temperature range from -40°C to +100°C and contains 84 I/O pins.

Field Programmable Gate Array Feature Summary

• Non-volatile flash-based FPGA architecture enabling instant-on functionality without external configuration memory.
• Integrated low-power design suitable for battery-operated and energy-efficient applications.
• Supports high-speed serial communication through integrated transceiver blocks.

Field Programmable Gate Array Applications

• Industrial control systems requiring reliable programmable logic.
• Consumer electronics utilizing low-power field-programmable gate arrays.
• Automotive infotainment and instrumentation interfaces.

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'TQ144I' corresponds to the TQFP-144 package and industrial temperature grade (-40°C to +100°C). Confirm RoHS compliance status directly with the manufacturer or authorized distributor documentation, as regulatory markings can vary by production batch. Ensure ESD handling protocols are followed during procurement and storage.

Field Programmable Gate Array Selection Notes

Select this model when 12K logic elements and 912 kbit memory are required in a 144-pin thin quad flatpack format. Compare against the M2GL005 series if lower resource usage suffices, or the M2GL010S variant if specific speed grades differ. Verify that the 84 available I/O pins meet interface requirements before finalizing the selection.

Field Programmable Gate Array Part Context

This component is part of the Microchip IGLOO2 family, which utilizes non-volatile flash technology. Unlike volatile SRAM-based FPGAs, IGLOO2 devices retain configuration data without power, simplifying system design by eliminating the need for external configuration PROMs. This family targets low-to-medium density applications across industrial, automotive, and consumer sectors.

Field Programmable Gate Array Replacement Considerations

The M2GL010-TQ144I may be substituted with other members of the M2GL010 family, such as M2GL010T-VFG256I or M2GL010T-FGG484I, provided pin compatibility and package constraints allow. Cross-package migration requires PCB redesign. Direct pin-compatible replacements within the same package type should be verified via official Microchip cross-reference tools.
