M2GL010-VFG400I

Field Programmable Gate Array Overview

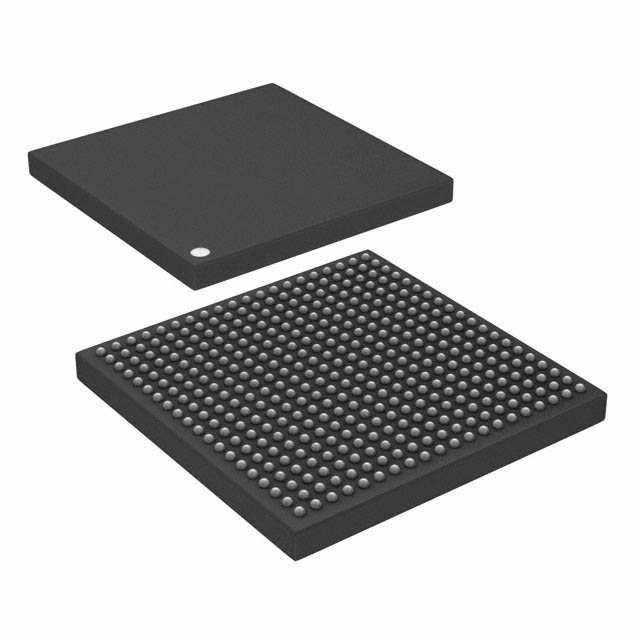

The M2GL010-VFG400I is a commercial-grade IGLOO 2 Field Programmable Gate Array manufactured by Microchip Technology. It features 12,084 logic elements and 912 kbit of embedded memory within a 400-pin VFBGA package measuring 17 mm x 17 mm. The device supports up to 233 I/Os and operates on a 1.2 V core supply voltage with a range of 1.14 V to 1.26 V. Recommended operating conditions specify a junction temperature range from 0 °C to 85 °C.

Field Programmable Gate Array Feature Summary

• Integrates low-power flash technology for non-volatile configuration storage.

Field Programmable Gate Array Applications

• Industrial control systems requiring secure programmable logic.

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I' confirms the industrial temperature grade if required, though datasheet Table 1-1 lists the base density as commercial production status. Confirm the package type matches the 400-pin VFBGA form factor. Ensure the ordering part number aligns with the exact density and speed grade specified in the official Microchip catalog.

Field Programmable Gate Array Selection Notes

Select this component when a design requires approximately 12K logic elements with integrated flash memory. Verify that the 400-pin VFBGA footprint fits the PCB layout constraints. Check that the 1.2 V core voltage and 1.14 V to 1.26 V supply range match the system power architecture.

Field Programmable Gate Array Part Context

This device belongs to the IGLOO 2 FPGA family, which utilizes Microchip's proprietary low-power flash process. It provides a secure, radiation-tolerant alternative to SRAM-based FPGAs by eliminating the need for external configuration memory. The family integrates high-performance SerDes interfaces and math blocks for signal processing applications.

Field Programmable Gate Array Replacement Considerations

M2GL010T-VFG400I
