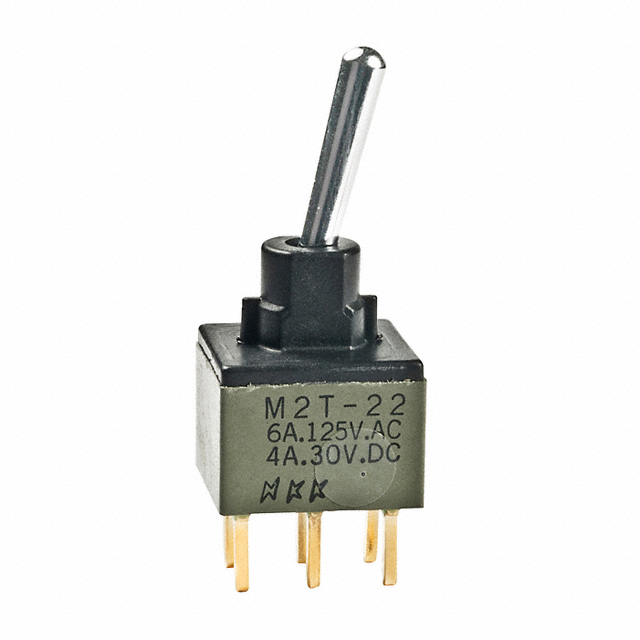

M2T22SA5A03 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE DPDT 6A 125V. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for M2T22SA5A03
- Description：SWITCH TOGGLE DPDT 6A 125V
- Series：M2
- Mfr：NKK Switches
- Package：Tray
- Mounting Type：Through Hole
- Circuit：DPDT
- Switch Function：On-On
- Current Rating (Amps)：6A (AC), 4A (DC)
- Voltage Rating - AC：125 V
- Voltage Rating - DC：30 V
- Actuator Type：Standard Round
- Actuator Length：12.70mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：PC Pin
- Panel Cutout Dimensions：-
- Bushing Thread：Unthreaded
- Ingress Protection：-
- Features：Process Sealed
- Operating Temperature：-30°C ~ 85°C
Toggle Switches datasheet and documents for M2T22SA5A03
