M30625FGPGP#U5C

Microcontrollers Overview

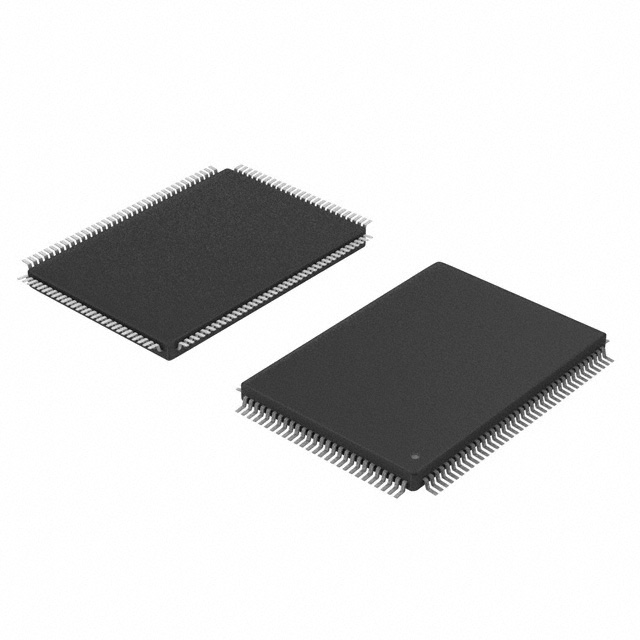

The M30625FGPGP#U5C is a 16-bit microcontroller from the Renesas M16C/62P series, utilizing the M16C/60 CPU core. It features 256 kB of Flash program memory and 20 kB of RAM within a 128-pin LFQFP package. The device supports a maximum clock frequency of 24 MHz and operates on a supply voltage range of 2.7 V to 5.5 V. Integrated peripherals include 26-channel 10-bit ADCs, two 8-bit DACs, UART interfaces, DMA, and a watchdog timer. It functions within an ambient temperature range of -40°C to +85°C.

Microcontrollers Feature Summary

• High-performance 16-bit processing with integrated multiplier and DMAC for efficient arithmetic operations.
• Extensive analog interface capabilities featuring multiple high-resolution ADC channels and DAC outputs.
• Robust peripheral set including multi-function timers, communication interfaces, and watchdog protection.

Microcontrollers Applications

• Office automation equipment control
• Industrial equipment management
• Communication system modules

Microcontrollers Procurement Notes

This component carries an NRND (Not Recommended for New Designs) status, indicating it is obsolete for new projects. Verify current lifecycle status and availability through authorized distributors before procurement. Ensure compatibility with existing designs as no direct functional replacements are officially guaranteed. Check for moisture sensitivity levels and handling requirements upon receipt.

Microcontrollers Selection Notes

Select this MCU for legacy systems requiring the specific M16C/60 architecture and 128-pin form factor. Consider the limited future availability due to its end-of-life status. Evaluate if newer Renesas families meet performance needs while offering better long-term support. Confirm that the 24 MHz speed and memory sizes align precisely with application constraints.

Microcontrollers Part Context

Part of the M16C/62P group single-chip microcomputers built on CMOS process technology. Designed for applications requiring sophisticated instruction efficiency and high-speed processing. The series targets control tasks in OA, communication, and industrial sectors where reliable 16-bit computation is essential.

Microcontrollers Replacement Considerations

No official substitute part numbers are confirmed for this component. The manufacturer recommends transitioning to the RX651 Group or other modern architectures for new designs. Direct pin-to-pin or functional equivalents are not documented in public sources.
