M32002BGPJ 240.000000

Overview

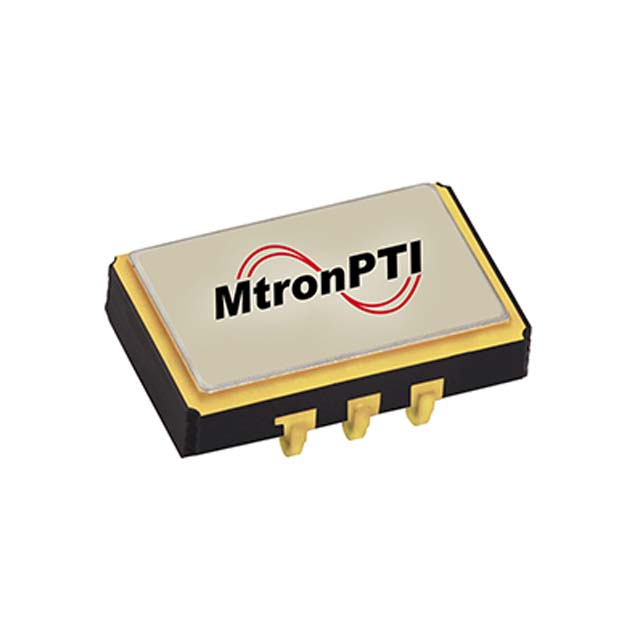

The M32002BGPJ 240.000000 is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by MtronPTI, operating at a nominal frequency of 240 MHz. It utilizes QiK Chip technology with a hermetically sealed high precision AT cut quartz crystal to deliver industry-standard 0.35 ps RMS jitter performance and excellent phase noise. The device supports LVPECL output signaling and operates on a 3.3V supply voltage. It is housed in a standard 6-SOJ package with a 2.54mm pitch, measuring approximately 14.22mm x 9.78mm.

Feature Summary

• Features QiK Chip technology for superior jitter performance comparable to SAW-based solutions
• Utilizes a hermetically sealed high precision AT cut quartz crystal for stability
• Supports LVPECL output interface for demanding circuit applications

Applications

• Telecommunications systems including SONET/SDH and DWDM
• Clock and Data Recovery (CDR) circuits
• Low Jitter Clock Generation modules
• Wireless base stations and WLAN infrastructure

Procurement Notes

Verify the specific ordering suffix and pin configuration against the official MtronPTI datasheet before integration. Confirm that the 3.3V LVPECL output level matches your receiver input requirements. Ensure the 6-SOJ package dimensions align with your PCB footprint constraints. Check RoHS compliance status if required for your manufacturing standards. Contact MtronPTi directly for application-specific technical support or custom build requirements.

Selection Notes

Select this component when low phase noise and tight thermal stability are critical for signal integrity. The 240 MHz frequency is suitable for high-speed serial data transmission interfaces. Consider the LVPECL output swing compatibility with downstream logic families. Evaluate the 0.35 ps RMS jitter specification against system timing budget requirements. Verify power supply voltage tolerance for stable operation within the 3.3V specification.

Part Context

This part belongs to the M320x series of VCXOs from MtronPTi, designed for high-performance clock generation. The series offers frequencies ranging from 150 MHz to 1.4 GHz with options for LVPECL, LVDS, or CML outputs. These oscillators are engineered for rapid deployment with short cycle times, providing a solid foundation for telecommunications and networking equipment designs requiring precise timing references.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult MtronPTi for potential cross-reference options or updated series replacements.
