M50-3100545

Headers, Receptacles, Female Sockets Overview

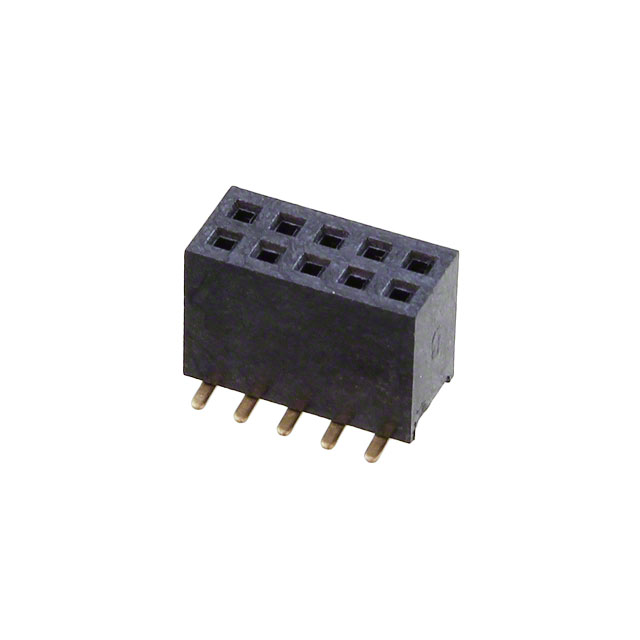

The Harwin M50-3100545 is a 10-contact double-in-line (DIL) board-to-board socket from the Archer M50 series. It features a 1.27mm pitch with two rows of five contacts each. Designed for surface mount installation, this vertical receptacle utilizes gold-plated phosphor bronze contacts and termination points. The housing is constructed from black UL94V-0 liquid crystal polymer (LCP). It supports a rated voltage of 1kV and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• High-voltage insulation capability up to 1kV for robust signal integrity
• Gold-plated phosphor bronze contacts ensure reliable electrical performance
• UL94V-0 rated LCP housing provides thermal stability and flame resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in high-density electronic assemblies
• Industrial control systems requiring reliable vertical mounting
• Consumer electronics utilizing surface mount technology

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm contact configuration and plating thickness. Ensure compatibility with mating pin headers regarding height and pitch. Confirm that the surface mount footprint matches the target PCB design guidelines before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, double-row board-to-board connection is required at 1.27mm pitch. Consider the 1kV rating for applications demanding higher isolation. Verify that the surface mount package aligns with automated assembly capabilities and that the operating temperature range meets environmental requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M50 series, which offers various mating heights and styles. The series includes complementary pin headers and jumper sockets designed specifically for 1.27mm pitch applications. This socket serves as a key interconnect solution within the broader family of high-reliability connectors.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin engineering for cross-reference options if this specific configuration is unavailable.
