M50-3630642R

Headers, Male Pins Overview

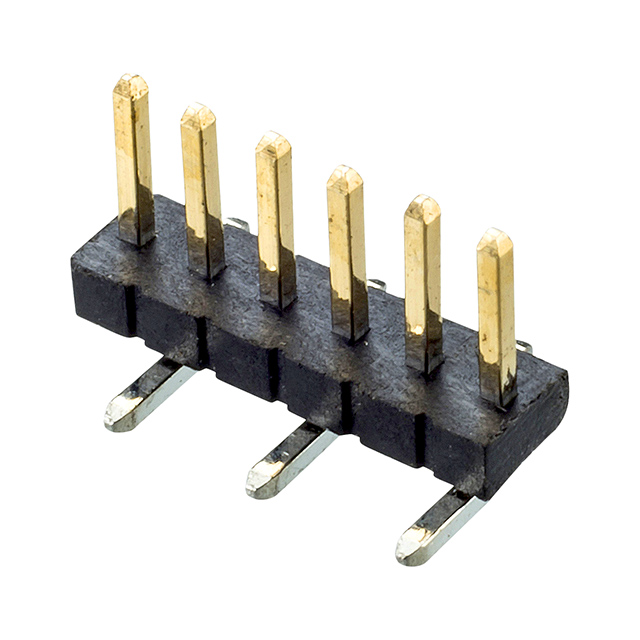

The M50-3630642R is a male pin header from the Harwin ARCHER M50 series, designed for surface mount technology (SMT) applications. It features a single row with six positions and a 1.27 mm (0.050 inch) pitch. The connector utilizes gold-plated brass contacts to ensure reliable signal transmission. Rated for 1 A current and 250 V voltage, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black thermoplastic material compliant with UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount design facilitates automated PCB assembly processes
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Compact single-row architecture optimizes board space utilization

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board connections
• General electronic device circuitry

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against official Harwin documentation to confirm reel packaging specifications and tape dimensions. Ensure compatibility with standard SMT reflow profiles and check for any RoHS compliance declarations in the latest datasheet before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row SMT header is required for dense circuit layouts. The 1.27 mm pitch suits applications needing moderate pin density without excessive board area consumption. Confirm that the 1 A current rating aligns with the specific circuit load requirements.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 family, known for high-density interconnect solutions. The M50 series offers various configurations including shrouded and unshrouded options in both single and double rows. This specific model represents a minimal configuration within the broader product line.

Headers, Male Pins Replacement Considerations

Consult Harwin's official cross-reference tools for verified substitutes. Generic headers may lack the precise 1.27 mm pitch tolerance or gold plating quality required for reliable performance in this application.
