M50-3900242

Headers, Male Pins Overview

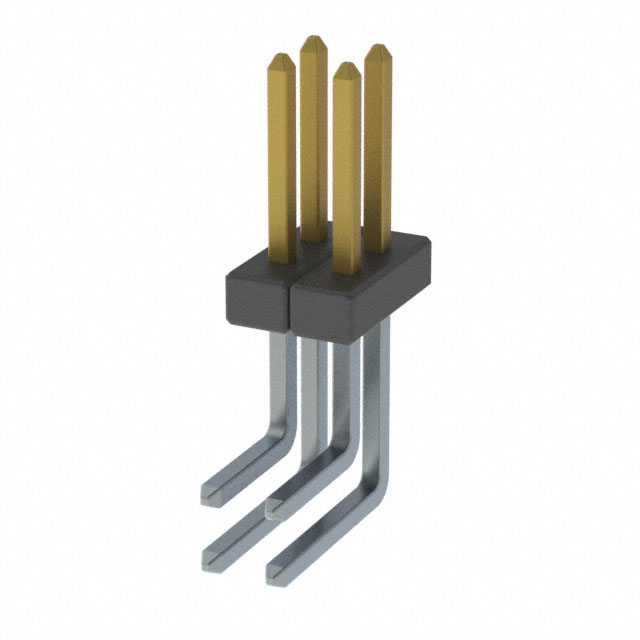

The M50-3900242 is a 4-position male board connector from Harwin, designed for right-angle through-hole mounting. It features a 1.27mm (0.05 inch) pitch and utilizes tin-plated contacts with a nickel barrier. The component has a dielectric withstand voltage of 1000VAC and a contact resistance of 30mΩ. It is RoHS compliant and lead-free. The connector body measures 1.4 inches in length, 0.188 inches in depth, and 0.134 inches in width.

Headers, Male Pins Feature Summary

• Right-angle two-part board connector design for horizontal PCB insertion
• Through-hole termination with solder pin style
• Tin-plated contacts with nickel barrier for corrosion resistance
• RoHS compliant and lead-free construction

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the required contact count and pitch match the application design specifications. Check for any obsolete or last-time-buy notices associated with this specific configuration before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component for applications requiring right-angle male headers with a 1.27mm pitch. Confirm that the PCB layout supports through-hole mounting and the specified body dimensions. Verify that the 1000VAC dielectric rating meets the electrical isolation requirements of the target circuit environment.

Headers, Male Pins Part Context

This part belongs to the M50 series of connectors manufactured by Harwin Inc. The series includes various configurations such as vertical headers, surface mount options, and different contact counts. This specific model represents a right-angle, through-hole variant within that broader product family.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 1.27mm pitch, 4-position count, and right-angle through-hole form factor. Verify mechanical compatibility and electrical ratings before swapping with other manufacturers' components.
