M50-4802845

Headers, Male Pins Overview

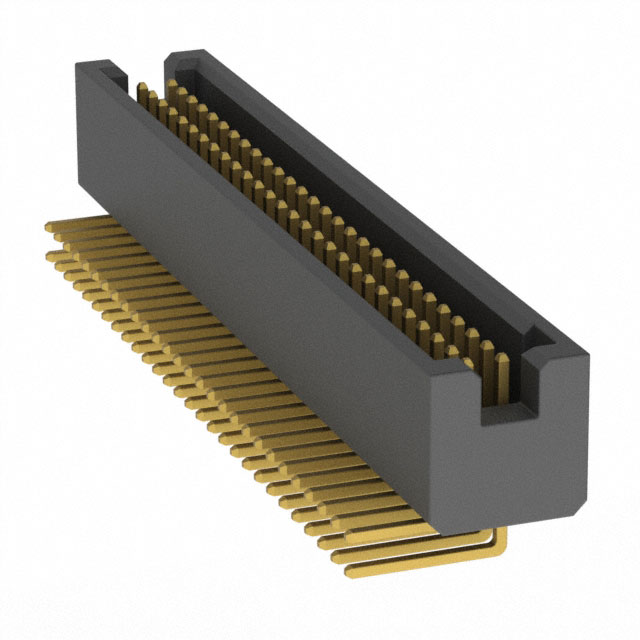

The Harwin M50-4802845 is a right-angle pin header assembly from the Datamate J-Tek series, designed for surface-mount technology applications. It features a 1.27 mm pitch and provides 56 positions in a dual in-line configuration. The connector utilizes gold plating on the contact surfaces to ensure reliable signal transmission and corrosion resistance. This component is engineered for high-reliability performance in extreme conditions, maintaining continuous signal integrity across various industrial environments.

Headers, Male Pins Feature Summary

• High-reliability miniature connector design suitable for extreme operating conditions
• Surface-mount right-angle configuration for efficient PCB space utilization
• Gold-plated contacts to ensure consistent signal integrity and durability

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Medical equipment demanding high signal reliability
• Automotive electronics with strict environmental standards

Headers, Male Pins Procurement Notes

Verify that the specific part number M50-4802845 matches the required 56-position count and right-angle orientation before procurement. Confirm compatibility with mating sockets from the Datamate J-Tek range. Ensure the surface-mount footprint aligns with the target PCB layout specifications to avoid assembly issues.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle connection is required for 1.27 mm pitch applications. Consider the gold plating option if long-term corrosion resistance is critical. Evaluate the mechanical stability of the right-angle form factor against the available board space constraints in the final assembly design.

Headers, Male Pins Part Context

This part belongs to the Harwin Datamate J-Tek family, known for its compact size and high-performance capabilities. The M50 series offers various mating heights and configurations, allowing designers to customize connector stacks. The J-Tek variant specifically emphasizes durability and signal integrity for demanding electronic applications.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 56 positions, and right-angle SMT format. Verify that any alternative maintains the same gold plating specification and housing material properties to ensure equivalent electrical and mechanical performance in the existing circuit design.
