M50-4911545

Headers, Male Pins Overview

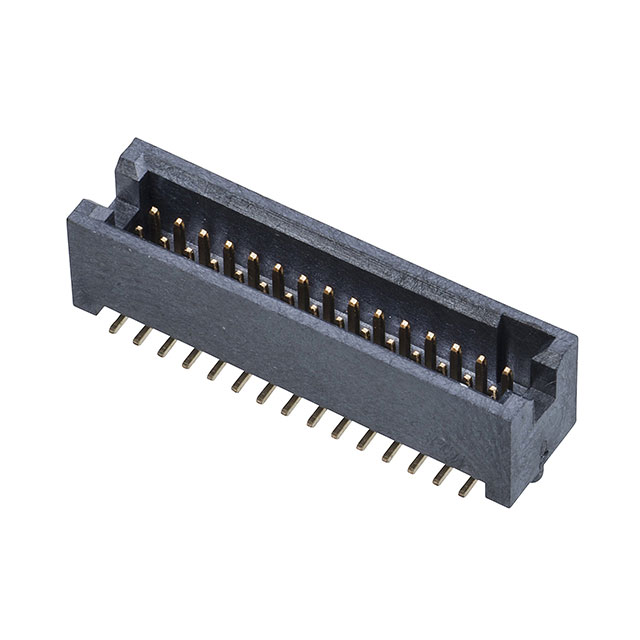

The Harwin M50-4911545 is a surface mount header from the ARCHER M50 series, featuring 30 positions arranged in a dual in-line (DIL) configuration. It utilizes a 1.27 mm pitch and operates with straight mounting orientation. The connector includes shrouded male pins with gold plating for reliable contact. Designed for board-to-board applications, it supports solder termination and functions within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design provides alignment and protection for mating connections
• Gold-plated contacts ensure durable conductivity and corrosion resistance
• Surface mount construction facilitates automated PCB assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• High-density circuit board interfaces requiring precise alignment
• Industrial control systems operating within specified thermal limits

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific packaging details prior to order placement. Ensure storage conditions maintain integrity of the gold-plated contacts and thermoplastic housing against environmental degradation.

Headers, Male Pins Selection Notes

Select this component when a shrouded, surface-mount male header with 1.27 mm pitch is required. Consider the 30-position count and dual-row layout for space-constrained designs. Verify that the operating temperature range and current ratings align with system requirements.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, characterized by high-density interconnect solutions. The series offers various position counts and mounting styles, catering to diverse electronic packaging needs while maintaining consistent electrical performance and mechanical reliability standards across the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M50 series headers with matching 1.27 mm pitch and 30-position configurations. Verify pin type, row count, and mounting style compatibility before substitution to ensure proper mechanical fit and electrical function.
