M5010012FV

Overview

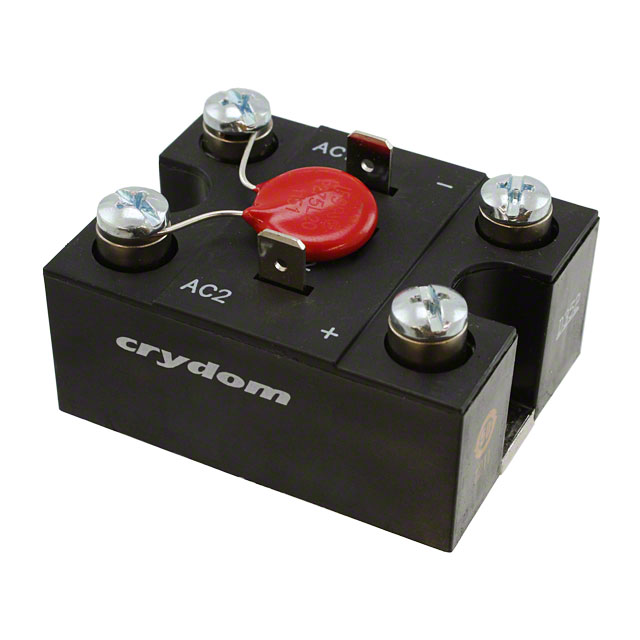

The M5010012FV is a silicon SCR module from the M50 series, manufactured by Sensata-Crydom. It features a single-phase bridge configuration combining two SCRs and two diodes. The device supports a peak reverse voltage of 600 V and a maximum gate trigger voltage of 3 V. It operates within a junction temperature range of -40°C to +125°C. The unit utilizes screw mount installation in a module package.

Feature Summary

• Single-phase bridge topology integrating two SCRs and two diodes
• High surge current capability for industrial switching applications
• Robust thermal performance across extended temperature ranges

Applications

• Industrial power control systems
• Motor drive circuits
• Resistive load switching

Procurement Notes

Verify the specific suffix FV against official datasheets to confirm pinout and mounting compatibility. Ensure the procurement channel provides original manufacturer documentation. Cross-reference the part number with Sensata-Crydom catalogs to validate current production status and technical specifications before ordering.

Selection Notes

Select this component for high-current AC phase control requiring integrated rectification. Compare the 600 V rating against system voltage peaks. Evaluate the 1500 A non-repetitive surge capacity against potential inrush currents. Confirm that the screw mount style fits the mechanical design constraints.

Part Context

This module belongs to the M50 series of discrete semiconductor components designed for heavy-duty power switching. The series offers various voltage and current ratings to accommodate diverse industrial requirements. Sensata-Crydom manufactures these modules using standard silicon technology for reliable operation in demanding environments.

Replacement Considerations

Consult official substitution guides for equivalent M50 series parts with matching voltage and current ratings. Verify pin configurations and thermal characteristics when considering alternative manufacturers.
