Product Detailed Parameters
- Description：MODULE POWER 100A 1200V SCR CC
- Series：M50
- Mfr：Sensata-Crydom
- Package：Bulk
- Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
- Number of SCRs, Diodes：2 SCRs, 2 Diodes
- Voltage - Off State：1.2 kV
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：1500A @ 60Hz
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

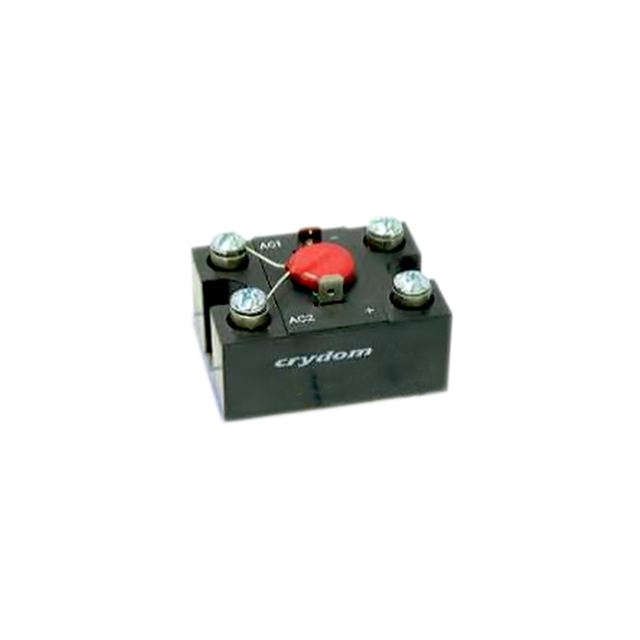

The M5010015FV is a silicon SCR module from the Crydom M50 series, manufactured by Sensata Technologies. It features a half-controlled bridge configuration with a common cathode and built-in diode. The device supports a maximum repetitive peak reverse voltage of 1200 V and a forward voltage drop of 1.2 V. Rated for a continuous on-state current of 100 A, it withstands a non-repetitive peak surge current of 1500 A. Operating within a junction temperature range of -40°C to +125°C, it utilizes screw mount installation.
Feature Summary
- Half-controlled bridge topology integrating SCRs and diodes in a single module
- Isolated case connection for secure mounting and thermal management
- High surge current capability for robust industrial switching applications
Applications
- Industrial power control systems requiring high current handling
- Motor drive circuits utilizing half-controlled rectification
- Resistive load switching in harsh environmental conditions
Procurement Notes
Verify the specific suffix 'FV' against official datasheets to confirm terminal configuration and packaging details. Ensure compatibility with existing thermal interface materials and torque specifications for screw mounting. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.
Selection Notes
Select this component when a 100 A rating at 1200 V is required in a compact module format. The M50 series offers standardized dimensions for easy replacement. Consider the 1.2 V forward voltage for thermal design calculations. Verify gate trigger requirements against the control circuit capabilities to ensure reliable turn-on under all operating temperatures.
Part Context
Part of the Crydom M50 discrete semiconductor family, designed for high-power switching. The series provides various voltage and current ratings in standardized modules. Sensata Technologies acquired Crydom, maintaining its reputation for solid-state switching solutions in industrial automation and energy infrastructure sectors.
Replacement Considerations
Cross-reference with M5010015F for potential mechanical or electrical equivalence. Verify pinout and terminal types before substitution. Ensure thermal resistance characteristics match the original design constraints.
