M5010015V

Overview

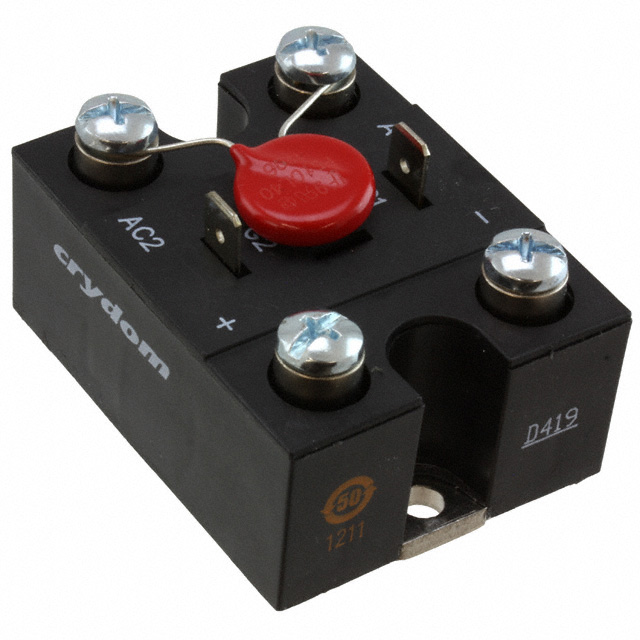

The M5010015V is a silicon SCR module from the Crydom M50 series, manufactured by Sensata. It features a single SCR configuration with a 100 A average on-state current and a 1200 V repetitive peak off-state voltage. The forward voltage drop is specified at 1.2 V. Designed for screw mount installation in a module package, it operates within a junction temperature range of -40°C to +125°C.

Feature Summary

• Single silicon-controlled rectifier (SCR) configuration
• Screw mount module packaging
• High thermal stability up to 125°C junction temperature

Applications

• Industrial power control systems
• Solid-state switching applications
• High-voltage DC circuit protection

Procurement Notes

Verify the specific suffix 'V' against official datasheets to confirm exact electrical tolerances and pinout configurations. Ensure compatibility with existing thermal management solutions given the 106 g unit weight. Confirm RoHS compliance status through current manufacturer documentation before finalizing procurement specifications.

Selection Notes

Select this component for applications requiring a single SCR in a robust module format. Compare the 100 A rating and 1200 V blocking capability against system requirements. Consider the screw mount style for mechanical integration. Evaluate thermal resistance characteristics relative to the ambient operating environment limits defined in the technical data.

Part Context

This part belongs to the M50 series of discrete semiconductor modules. The series includes various diode and SCR configurations. The M5010015V specifically addresses high-current, high-voltage switching needs. It shares the standard M50 module footprint with other variants in the lineup.

Replacement Considerations

Check for direct substitutes within the M50 series offering identical 100 A and 1200 V ratings. Verify pin compatibility and thermal performance metrics. Consult official replacement guides for discontinued or updated versions.
