M505012FV

Overview

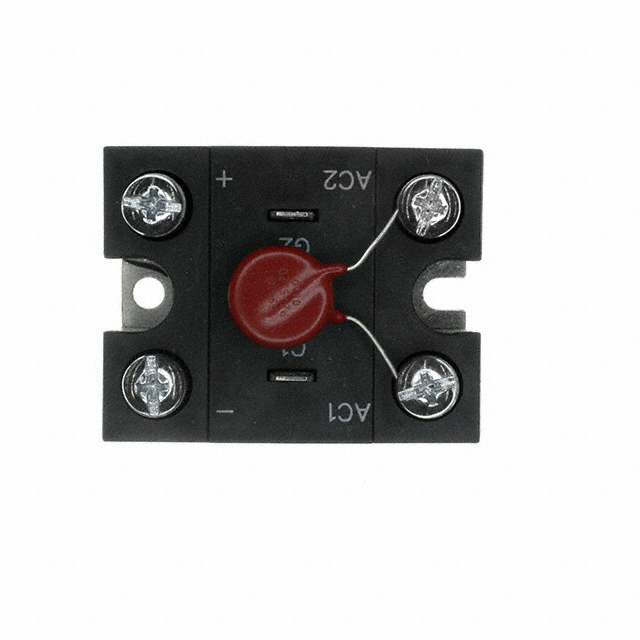

The M505012FV is a single-phase SCR bridge rectifier module from the M50 series by Sensata-Crydom. It features a 600 V off-state voltage rating and a continuous current capacity of 50 A. The device supports a non-repetitive surge current of 600 A at 60 Hz. It utilizes a six-pin configuration with screw terminal connections for secure mounting. The module is designed for base installation, ensuring efficient thermal management and reliable performance in high-power applications.

Feature Summary

• Single-phase thyristor bridge rectifier configuration
• High surge current capability for robust operation
• Efficient thermal management design for extended lifetime

Applications

• Industrial motor drives
• Power supply systems
• DC power control circuits

Procurement Notes

Verify the specific suffix 'FV' against official datasheets to confirm pinout and mounting specifications. Ensure thermal interface materials are compatible with the module's base requirements. Confirm that the application voltage and current ratings remain within the specified limits for safe operation.

Selection Notes

Select this module when a single-phase rectification solution with 50 A continuous current and 600 V blocking voltage is required. Consider the 600 A surge rating for inrush current scenarios. Evaluate thermal dissipation needs based on the ambient operating conditions and heat sink compatibility.

Part Context

Part of the M50 series, which offers modular power solutions for industrial applications. The series emphasizes reliability and thermal efficiency. This specific model integrates SCR technology into a compact module format suitable for base mounting in various power electronics assemblies.
