M505042

$67.24

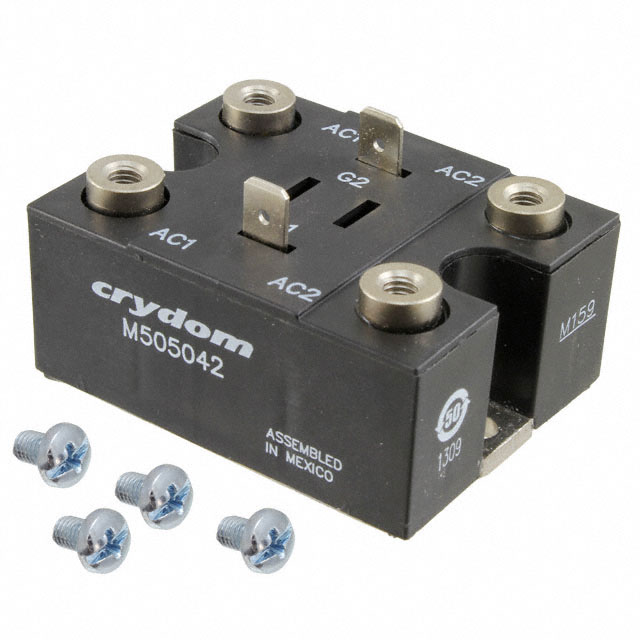

Description：MODULE POWER 50A 600V AC SWITCH
Series：M50

SKU:44b349d957ca Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MODULE POWER 50A 600V AC SWITCH
Series：M50
Mfr：Sensata-Crydom
Package：Bulk,Box
Structure：1-Phase Controller - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：600 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：600A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

M505042

Overview

The M505042 is a single-phase SCR module manufactured by Sensata-Crydom. It features a 600 V repetitive peak off-state voltage and a maximum gate trigger voltage of 3 V. The device supports a non-repetitive surge current of 600 A at 60 Hz. Designed for base mounting, it operates within a junction temperature range of -40°C to 125°C. The module contains two SCRs and utilizes silicon technology.

Feature Summary

Single-phase controller configuration with dual SCR structure
Base-mounted mechanical design for secure installation
Silicon semiconductor construction for thermal stability

Applications

Industrial power control systems
AC voltage regulation circuits
Motor speed control applications

Procurement Notes

Verify component authenticity through authorized Sensata-Crydom channels. Confirm datasheet revisions match the production batch. Check RoHS compliance status prior to integration. Validate package dimensions against PCB layout requirements. Ensure storage conditions prevent moisture damage before soldering.

Selection Notes

Evaluate thermal management needs based on the specified junction temperature limits. Compare surge current ratings against expected load transients. Verify gate trigger specifications align with control circuit capabilities. Consider base mounting requirements for heat dissipation efficiency.

Part Context

This component belongs to the M50 series of discrete semiconductor modules from Sensata-Crydom. The series includes various diode and SCR configurations designed for industrial power switching. These modules typically feature robust silicon constructions suitable for demanding electrical environments.
