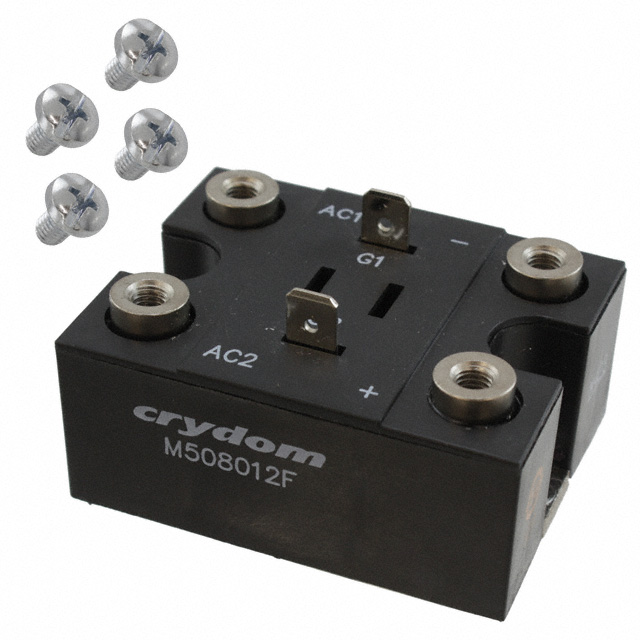

M508012F
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：MODULE POWER 12A 600V SCR CC
- Series：M50
- Mfr：Sensata-Crydom
- Package：Bulk
- Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
- Number of SCRs, Diodes：2 SCRs, 2 Diodes
- Voltage - Off State：600 V
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：-
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview
The M508012F is a single-phase SCR bridge module manufactured by Sensata-Crydom. It features a 600 V reverse voltage rating and an 80 A RMS on-state current capacity. The device utilizes silicon technology and is designed for screw mount installation in a module package. It operates within a standard industrial temperature range and complies with RoHS standards.
Feature Summary
- Single-phase SCR bridge configuration
- Screw mount chassis installation style
- Silicon semiconductor technology
Applications
- Industrial power control systems
- Solid state relay applications
- Discrete semiconductor module circuits
Procurement Notes
Verify the specific datasheet version for the M508012F to confirm electrical characteristics and mechanical dimensions. Ensure compatibility with existing thermal management solutions, as the module requires appropriate heat sinking for optimal performance. Confirm that the mounting hardware meets the required torque specifications for secure connection.
Selection Notes
Select the M508012F when a robust single-phase SCR bridge is required for high-current applications. Consider its 600 V rating and 80 A current capacity against system demands. Evaluate the screw mount requirement against available PCB or chassis space. Verify that the module's thermal resistance aligns with the intended cooling strategy.
Part Context
This component belongs to the Crydom discrete semiconductor modules category. It is part of the broader Sensata Technologies portfolio, which includes various power electronics solutions. The M508012F serves as a fundamental building block for AC power control circuits requiring reliable switching capabilities.
Replacement Considerations
Consult official manufacturer substitution guides for verified equivalent parts. Cross-reference technical specifications such as voltage, current, and package type before considering alternatives.
