M55302/63B50S

Headers, Male Pins Overview

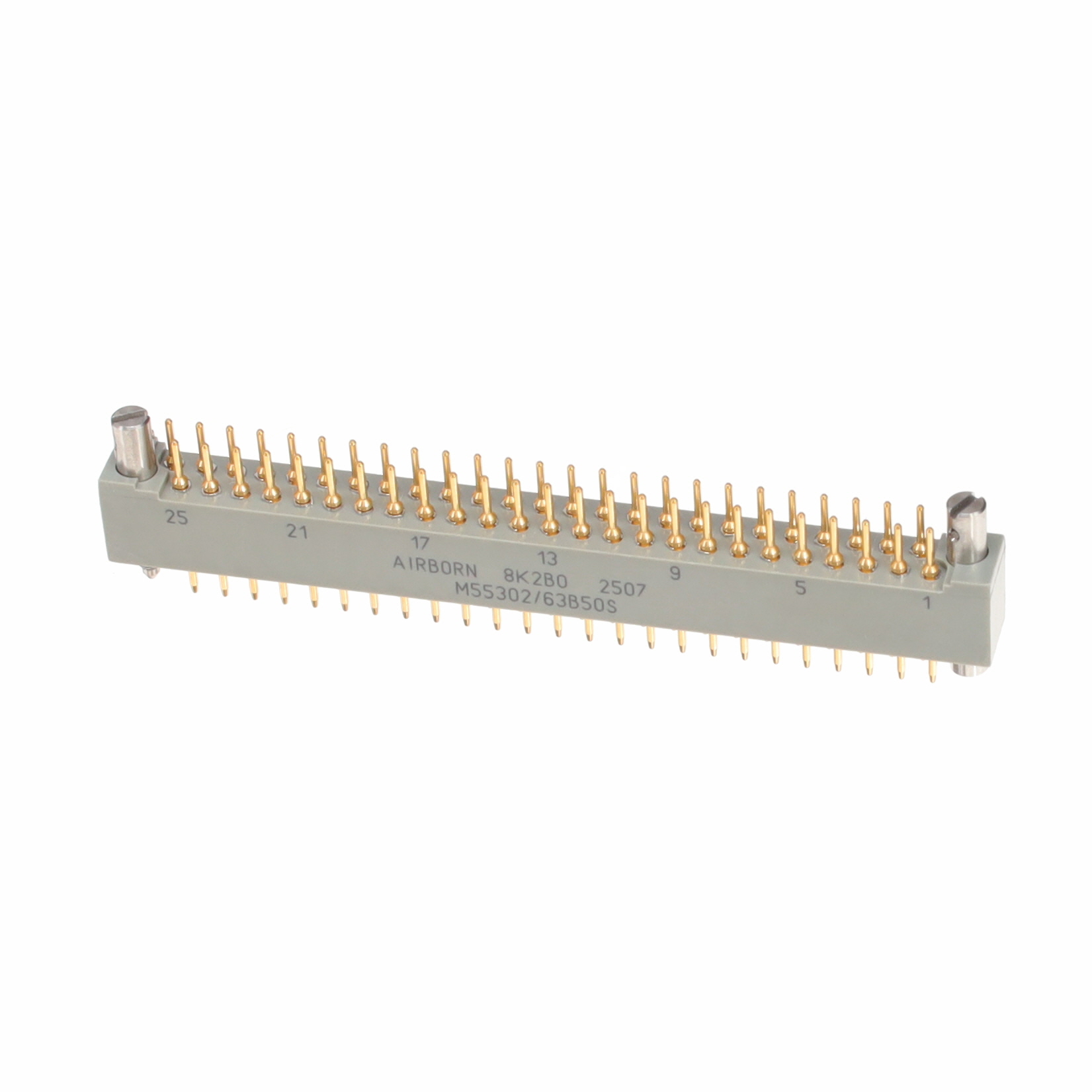

The AirBorn M55302/63B50S is a rectangular MIL-DTL-55302 connector featuring 50 positions in a dual-row configuration. It utilizes gold-plated copper male pin contacts with a 2.54 mm pitch. Designed for PCB mount, this right-angle header supports up to 5 A current and 100 V voltage. The polyphenylene sulfide (PPS) housing ensures operation between -65°C and +125°C, providing 5 GOhms insulation resistance.

Headers, Male Pins Feature Summary

• High-density interconnect capability within the W Series family
• Gold contact plating for reliable signal transmission
• Right-angle PCB mounting orientation

Headers, Male Pins Applications

• Aerospace systems requiring flexible circuit integration
• Defense electronics demanding high reliability
• Mission-critical military equipment interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Molex/AirBorn channels. Confirm RoHS compliance status via official datasheets. Validate environmental ratings against specific operational requirements. Ensure correct ordering suffixes match mechanical specifications. Request factory documentation for lifecycle status confirmation.

Headers, Male Pins Selection Notes

Evaluate thermal performance limits against system operating conditions. Assess mechanical stress on right-angle PCB joints during vibration. Verify contact mating cycles meet application durability needs. Compare physical dimensions against available board space constraints. Confirm compatibility with existing assembly processes.

Headers, Male Pins Part Context

This part belongs to the AirBorn W Series, designed for flexible circuits. It adheres to MIL-DTL-55302 standards for plastic rectangular connectors. The series emphasizes high density and reliability for tough environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include M55302/63-A14H and M55302/63A36H. Verify position count and pitch alignment before substitution.
