M61102JTCN 50.000000

Overview

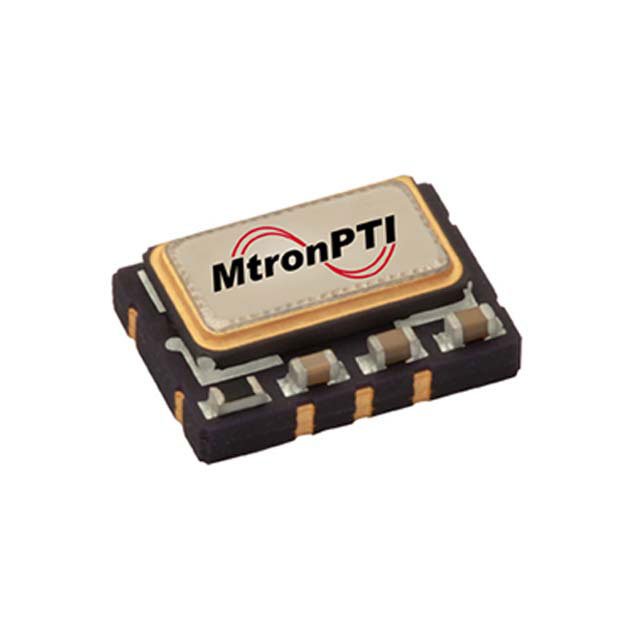

The M61102JTCN is a precision surface-mount temperature-compensated crystal oscillator (TCXO) manufactured by MtronPTI. It operates at a nominal frequency of 50 MHz and utilizes an HCMOS output interface with a specified load capacitance of 15 pF. The device supports multiple supply voltages, including 3.0 V, 3.3 V, and 5.0 V, ensuring compatibility with various digital logic levels. Encased in a leadless ceramic package measuring 7.0 mm x 5.0 mm x 2.0 mm, it is designed for robust performance across an industrial temperature range from -40 °C to +85 °C. Key electrical characteristics include a maximum aging rate of 1 ppm per first year and a frequency stability of 1%.

Feature Summary

• Features a tri-state function allowing enable/disable control for power management
• Provides high-precision frequency stability suitable for demanding applications
• Utilizes a compact leadless ceramic surface-mount package design

Applications

• WiMax base stations
• Military and Avionics systems
• Point-to-point and multi-point radios
• Test and measurement equipment
• GPS receivers

Procurement Notes

Verify the specific voltage variant required, as the series supports 3.0 V, 3.3 V, and 5.0 V options. Confirm that the 50 MHz frequency matches the system clock requirements. Ensure the PCB footprint aligns with the 7.0 mm x 5.0 mm physical dimensions. Check for RoHS compliance status if environmental regulations apply to the final assembly. Validate the operating temperature range against the intended deployment environment.

Selection Notes

Select this component when precise timing is critical for wireless or avionics infrastructure. The HCMOS output simplifies interfacing with standard digital circuits without additional level shifting. The tri-state capability offers flexibility for system power-down modes. Consider the 1 ppm aging specification for long-term calibration needs. The wide supply voltage options allow integration into diverse power architectures.

Part Context

This part belongs to the M611x Series of precision TCXOs and TCVCXOs from MtronPTi. The series is characterized by tight stability over wide industrial temperature ranges and low phase noise. These oscillators are engineered for applications requiring reliable clock sources in challenging environments, such as telecommunications and defense sectors. The family includes various output types and frequencies to meet specific design constraints.

Replacement Considerations

Direct substitutes within the same series include other M611x variants with compatible pinouts and electrical specifications. Verify that any replacement maintains the 50 MHz frequency and HCMOS output type. Ensure the alternative part supports the required supply voltage and temperature range. Cross-reference the physical package dimensions to guarantee mechanical fit on the existing PCB layout.
