M74HC73RM13TR

Flip Flops Overview

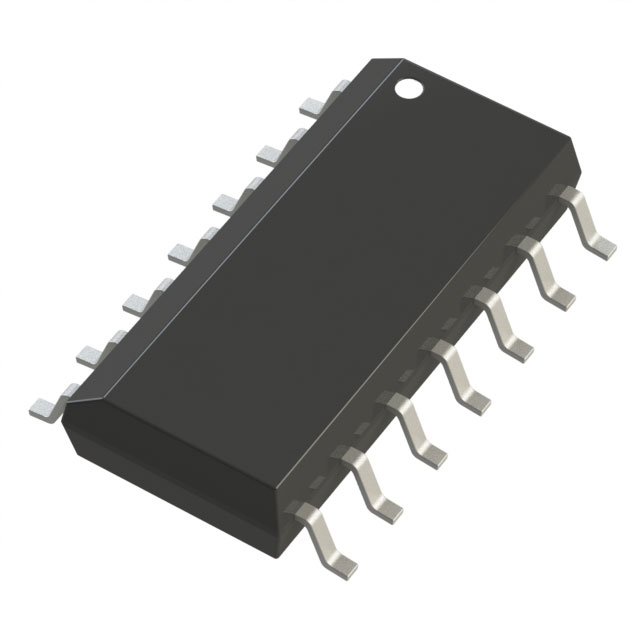

The M74HC73RM13TR is a dual J-K flip-flop with preset and clear functions, manufactured by STMicroelectronics. It operates within a supply voltage range of 2V to 6V and features complementary outputs. The device is housed in a 14-SOP package and supports surface mount installation. It is designed for high-speed CMOS applications using silicon gate C2MOS technology.

Flip Flops Feature Summary

• Dual J-K flip-flop configuration with asynchronous preset and clear inputs
• Complementary output structure for versatile logic interfacing
• High-speed CMOS fabrication ensuring reliable digital signal processing

Flip Flops Applications

• Digital data storage circuits
• Sequential logic control systems
• Frequency division networks

Flip Flops Procurement Notes

Verify component authenticity through authorized channels due to obsolete status. Confirm package integrity and pin alignment against datasheet specifications. Ensure handling procedures comply with electrostatic discharge protection standards during assembly and testing phases.

Flip Flops Selection Notes

Select this component for designs requiring dual independent J-K flip-flops with preset and clear capabilities. Consider the 14-SOP package constraints and operating temperature range when integrating into the final system architecture.

Flip Flops Part Context

This part belongs to the M74HC73 series of dual J-K flip-flops from STMicroelectronics. It utilizes advanced C2MOS technology to provide robust performance in standard digital logic environments, serving as a fundamental building block for sequential circuit design.

Flip Flops Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if sourcing alternatives.
