M80-4030842

Headers, Receptacles, Female Sockets Overview

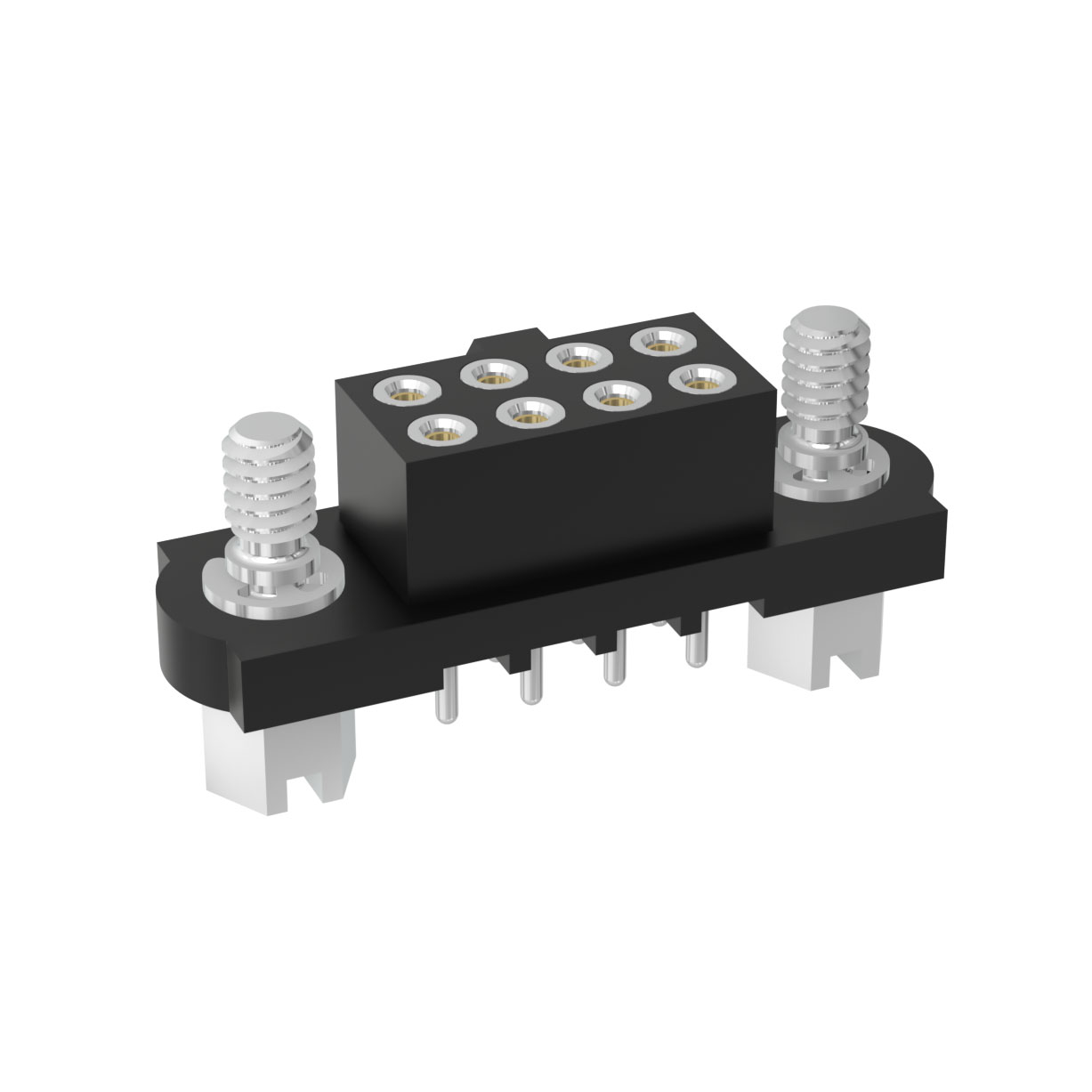

The M80-4030842 is an 8-position female receptacle connector from the Datamate J-Tek series by Harwin Inc. It features a 2.00mm pitch and through-hole termination for PCB mounting. The contacts are gold-plated with a thickness of 12.0µin (0.30µm) on the mating surface, while the tails are tin-plated. Rated for 800V and utilizing PPS insulation, it supports board-to-board or cable applications within a -55°C to 125°C operating range.

Headers, Receptacles, Female Sockets Feature Summary

• Female DIL receptacle design with four-wall shielding for signal integrity
• Gold-plated circular contacts ensure reliable low-resistance connections
• Integrated jackscrew locking mechanism provides secure mechanical retention
• High-temperature PPS insulation material ensures stability in harsh environments

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics and general industrial equipment
• Military and defense applications demanding high reliability

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and tail configuration. Ensure compatibility with the corresponding male plug assembly from the same Datamate J-Tek family. Confirm that the jackscrew locking style matches the enclosure requirements. Check the rated voltage and current specifications against the application load. Validate the PCB footprint dimensions using the official CAD model before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a shielded, latched female header is required for high-voltage applications. The 2.00mm pitch allows for dense packing while maintaining electrical clearance. Consider the through-hole mounting method for superior mechanical strength compared to surface mount options. Evaluate the need for the integrated jackscrew versus other locking styles based on panel constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek series, designed for demanding environments. It complements male plugs like the M80-5T10842M3. The series offers various configurations including vertical and right-angle headers. It is suitable for applications requiring high durability and consistent performance over time.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek female receptacles with identical pin counts and pitch. Verify that any alternative maintains the same shielding and locking mechanism. Cross-reference with M80-405 series variants if different stacking heights are needed.
