M80-4032005

Headers, Receptacles, Female Sockets Overview

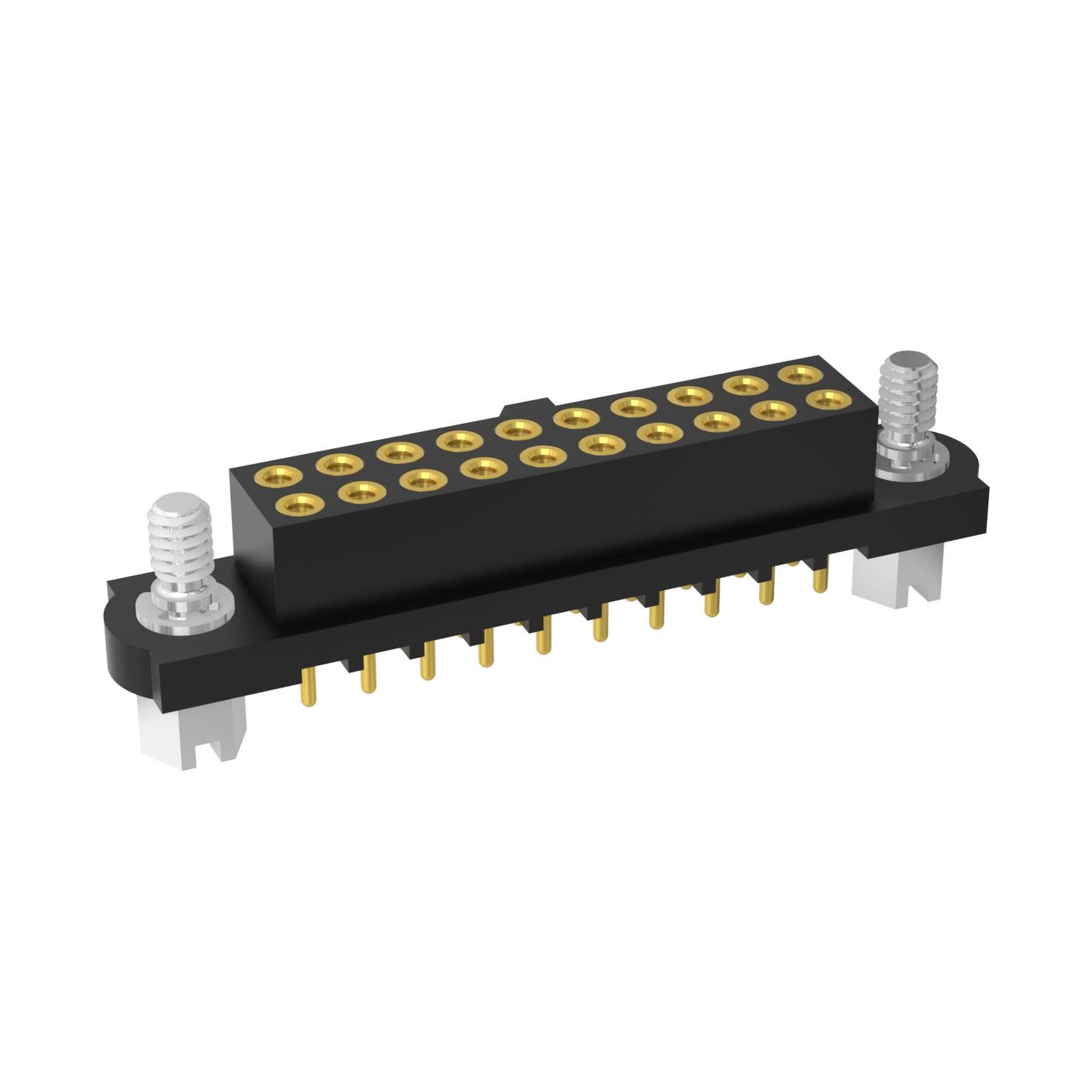

The Harwin M80-4032005 is a Datamate J-Tek series through-board connector receptacle featuring 20 positions arranged in a dual inline (DIL) configuration. It utilizes female contacts with a 2mm mating pitch and operates within a temperature range of -55°C to +125°C. The unit includes jackscrew locking mechanisms for secure attachment and offers mated stacking heights of 7.3mm and 7.55mm. Rated at 3.3A per contact, it employs gold-plated brass contacts housed in black polyphenylene sulfide (PPS) insulation.

Headers, Receptacles, Female Sockets Feature Summary

• Integrated jackscrew locking system ensures reliable mechanical retention during operation.
• Dual inline layout facilitates high-density circuit board interconnections.
• Constructed from flame-retardant PPS material for thermal stability.

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust signal transmission
• Automotive electronic modules demanding secure connections
• Test and measurement equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, tail length, and locking mechanism variations. Ensure compatibility with corresponding male headers regarding stacking height requirements. Confirm RoHS compliance status through current manufacturer declarations before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a secure, locked connection is critical for signal integrity in space-constrained environments. The dual-row format supports higher pin counts compared to single-row alternatives. Evaluate the required mating height against available compatible header options to ensure proper assembly clearance.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability interconnect solutions. The series emphasizes secure locking features and compact form factors suitable for demanding applications. It complements other components within the same ecosystem to create complete connector assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Harwin substitution guides for verified equivalent part numbers. Generic cross-references may not match the precise jackscrew interface or stacking height specifications required for proper integration.

Headers, Receptacles, Female Sockets FAQ

What is the rated current capacity per contact?

The connector is rated for 3.3A per contact under standard operating conditions.

Does this connector include locking hardware?

Yes, it features integrated jackscrews to provide secure mechanical locking between mating connectors.
