M80-4032642

Headers, Receptacles, Female Sockets Overview

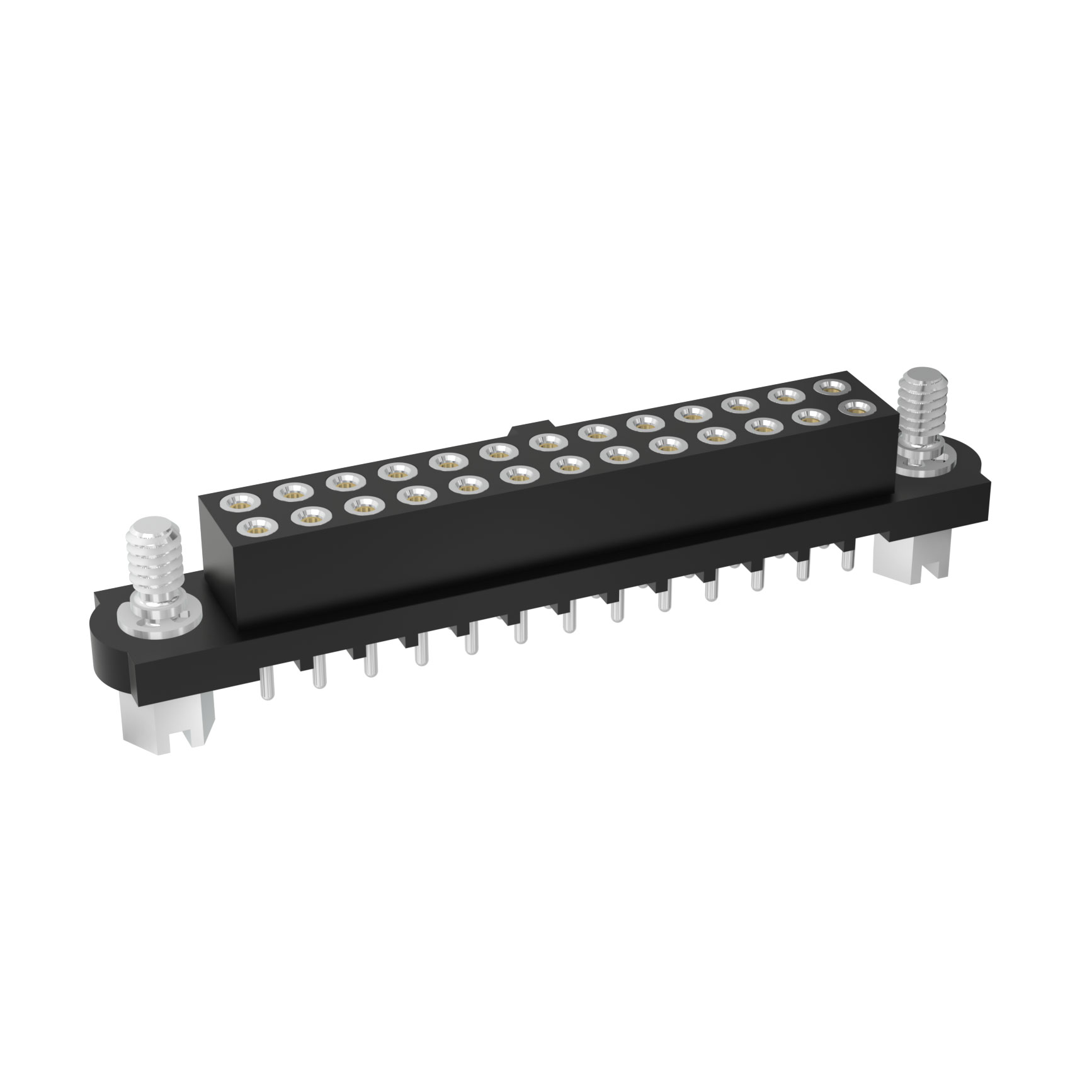

The M80-4032642 is a Datamate J-Tek PCB receptacle connector manufactured by Harwin Inc. It features a 26-position configuration arranged in two rows, providing a total of 13 contacts per row. The connector utilizes a 2 mm (0.079 inch) mating pitch and is designed for vertical through-hole mounting on printed circuit boards. It employs male pin contacts with gold plating to ensure reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS) reinforced with glass fiber, offering high thermal stability and mechanical strength. This component supports board-to-board interconnections within the specified operating temperature range.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row design accommodating 26 positions for high-density connectivity
• Vertical through-hole termination for secure PCB integration
• Gold-plated male contacts ensuring low contact resistance
• Glass-fiber reinforced PPS insulation for thermal and chemical resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Industrial control modules requiring robust connectors
• Automotive electronic assemblies
• Military-grade equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number M80-4032642 against official Harwin documentation to confirm current availability status. Check for any Product Change Notices (PCN) regarding material updates or obsolescence. Ensure compatibility with mating female sockets from the same Datamate J-Tek series. Confirm that the required hardware kit is included or ordered separately if not integrated into the standard supply package.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 26-pin vertical header is required for through-hole assembly. The 2 mm pitch allows for compact layout designs compared to larger spacing options. Consider the gold plating thickness for corrosion resistance needs. Verify that the panel mount style aligns with the enclosure design requirements. Ensure the operating voltage and current ratings meet the system's electrical specifications.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Datamate J-Tek family, known for its modular design and high reliability. The M80 series represents a standard line of rectangular connectors suitable for demanding environments. The J-Tek variant specifically offers enhanced locking mechanisms and diverse mating options. This particular model serves as a male header counterpart to female socket connectors within the same ecosystem.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes may include other Harwin M80 series headers with identical 26-position, 2-row, vertical through-hole configurations. Verify that any alternative maintains the 2 mm pitch and compatible locking features. Cross-reference with updated part numbers if the original is discontinued.
