M80-4034242

Headers, Receptacles, Female Sockets Overview

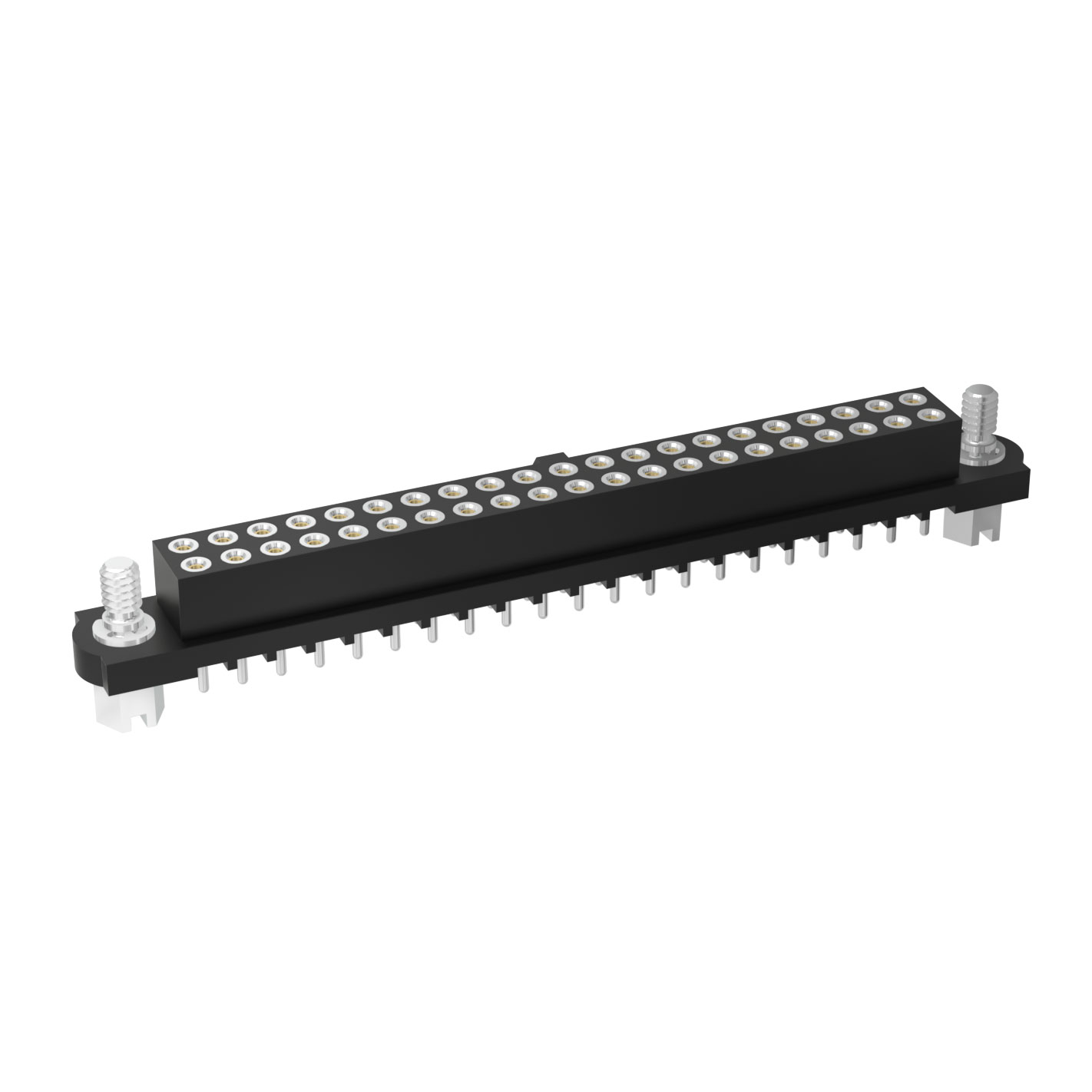

The M80-4034242 is a Datamate J-Tek series board connector manufactured by Harwin Inc. It features a 42-position configuration arranged in two rows, providing a 21+21 pin layout. The component utilizes a 2 mm (0.079 inch) pitch and is designed for vertical through-hole mounting with solder termination. Contact materials consist of beryllium copper with gold plating on the mating interface and tin plating on the tail. The housing is constructed from black polyphenylene sulfide (PPS). Electrical ratings include a current capacity of 3 A and an insulation resistance of 100 MOhms. The operational temperature range spans from -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Datamate J-Tek system provides polarized keying and locking flange options for secure interconnection.
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
• Polyphenylene sulfide (PPS) housing offers high thermal stability and mechanical strength.

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Automotive electronics
• Military and aerospace equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm contact plating and tail length variations. Ensure compatibility with mating receptacles within the same Datamate J-Tek family. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, vertically mounted header is required for power or signal distribution. The 2 mm pitch suits applications needing robust connections in constrained spaces. Verify that the mating connector matches the female socket configuration and locking mechanism requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate J-Tek line, known for modular connectivity solutions. It serves as a male header counterpart to female wire housing or board mount sockets. The series supports various configurations for diverse electronic assembly needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes are limited due to unique molding and keying profiles. Cross-reference only with other Harwin M80-40342 variants sharing identical pin counts, pitch, and mounting style. Generic connectors lack compatible locking mechanisms.

Headers, Receptacles, Female Sockets FAQ

What is the contact material for the M80-4034242?

The contacts are made from beryllium copper with gold plating on the mating area and tin plating on the solder tail.

Does this connector support polarized keying?

Yes, the Datamate J-Tek series includes polarized keying options to prevent incorrect mating.
