M80-4101042

Headers, Receptacles, Female Sockets Overview

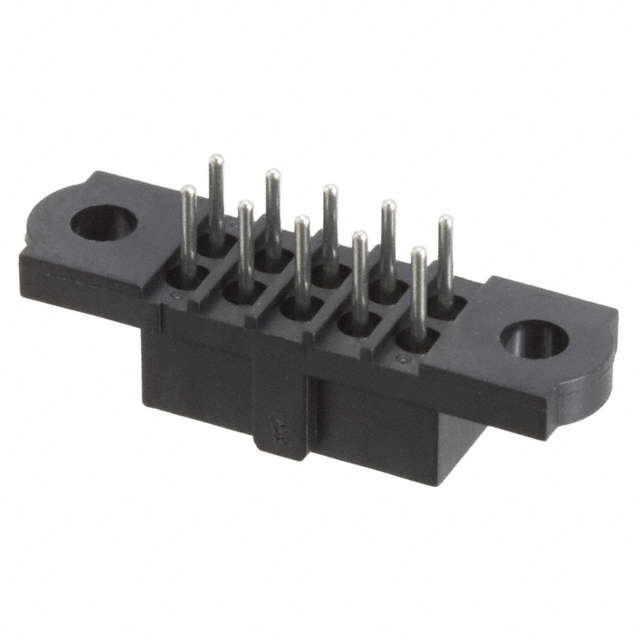

The M80-4101042 is a 10-position female socket connector from the Harwin Datamate J-Tek series. It features a 2.00mm (0.079 inch) mating pitch and is designed for through-hole PCB mounting with solder termination. The housing is black, constructed from glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. Contacts are made of beryllium copper with gold plating on the mating interface and tin plating on the tail. Rated for 120V, it operates between -55°C and +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• High-reliability four-finger beryllium copper contacts ensure connection integrity under vibration and shock.
• Polarized molded housing prevents incorrect mating and ensures correct alignment.
• Fully shrouded contact design protects against contamination and accidental shorting.
• Locking screw feature provides secure mechanical retention during operation.

Headers, Receptacles, Female Sockets Applications

• Automotive electronics systems
• Military equipment interconnects
• General industrial control boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes to confirm pin count, orientation, and termination style match the design requirements. Ensure the ordering part number corresponds exactly to the required receptacle configuration. Cross-reference the datasheet for environmental ratings and mating partner compatibility before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust, polarized female socket is needed for board-to-board or cable connections. Consider the 2.00mm pitch and through-hole mounting constraints. Evaluate the need for locking screws and shrouded contacts for harsh environments requiring high vibration resistance.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek family, known for high-performance 2mm pitch connectors. The M80-4101042 specifically serves as a receptacle within this ecosystem, designed to mate with corresponding male headers like the M80-8101042 series. It supports demanding applications requiring durable electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin Datamate J-Tek receptacles with identical 10-position, 2.00mm pitch, and through-hole specifications. Verify that any alternative maintains the same polarization keying and locking mechanism to ensure interchangeability in existing assemblies.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in this connector?

The contacts are manufactured from beryllium copper to provide high strength and excellent conductivity.

Is the connector polarized?

Yes, the M80-4101042 features a polarized molding to prevent incorrect mating.
