M80-4101442

$7.97

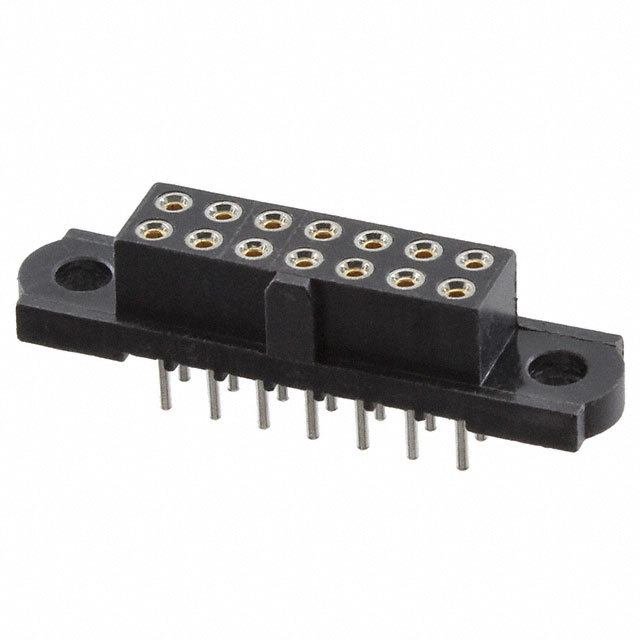

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:9d45cca321ff Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M80-4101442 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 14POS 0.079 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M80-4101442

Description：CONN RCPT 14POS 0.079 GOLD PCB
Series：Datamate J-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：14
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：-
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.205" (5.20mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：7.3mm, 7.55mm
Ingress Protection：-
Features：Mating Flange, Polarizing Key
Current Rating (Amps)：-
Voltage Rating：120V

Headers, Receptacles, Female Sockets datasheet and documents for M80-4101442

M80-4101442

Headers, Receptacles, Female Sockets Overview

The Harwin M80-4101442 is a 14-position receptacle connector from the Datamate J-Tek series. It features a 2-row configuration with a 2.00mm pitch and through-hole termination. Rated for 12A current and 120V, it utilizes gold-plated beryllium copper contacts within a black PPS housing. The connector supports board-to-board or cable applications with jack screw locking.

Headers, Receptacles, Female Sockets Feature Summary

Jack screw locking mechanism ensures secure mating
Gold-plated contacts provide reliable signal transmission
Glass-filled PPS insulation offers high thermal stability

Headers, Receptacles, Female Sockets Applications

Automotive systems
General industrial equipment
Military applications

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and housing material variations. Ensure compatibility with corresponding male headers in the M80 series. Confirm that the jack screw locking style matches the mechanical design requirements of the target assembly before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust, locked board-to-board connection is required. The 2.00mm pitch accommodates standard PCB layouts. Consider the 12A current rating for power distribution needs. Verify that the through-hole mounting style aligns with the manufacturing process capabilities of the printed circuit board design.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin M80 Datamate J-Tek family, known for high-density interconnect solutions. The series provides versatile options for harsh environments. The M80-4101442 specifically addresses needs for secure, high-current connections in compact form factors across multiple industry sectors.
