M80-4102442

Headers, Receptacles, Female Sockets Overview

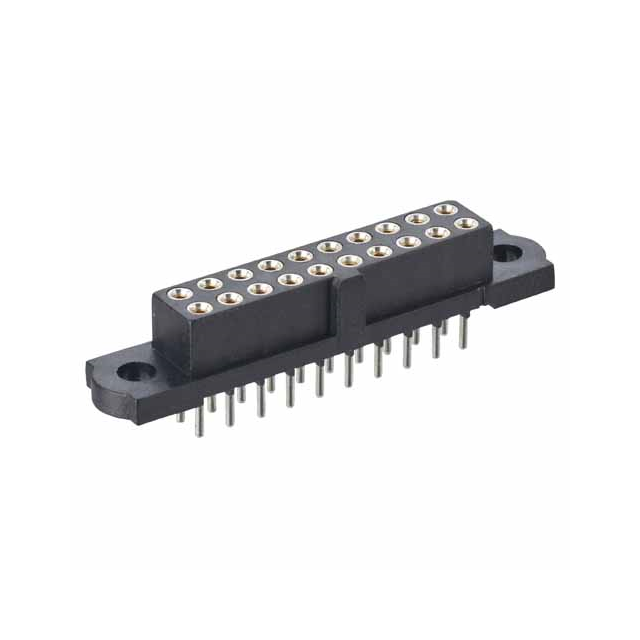

The M80-4102442 is a Datamate J-Tek series receptacle connector manufactured by Harwin Inc. It features 24 positions arranged in two rows with a 2.00mm (0.079 inch) mating pitch. Designed for through-hole termination, the housing is constructed from black Polyphenylene Sulfide (PPS) reinforced with glass fiber, meeting UL 94 V-0 flammability standards. The contacts are made of beryllium copper and feature gold plating on the mating interface. This component supports board-to-board or cable applications and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Datamate J-Tek series design providing high mechanical resistance to shock, bump, and vibration
• Gold-plated beryllium copper contacts ensure reliable signal transmission
• Polyphenylene Sulfide (PPS) housing offers robust thermal stability and flame retardancy
• Through-hole mounting style secures the connector firmly to the printed circuit board

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• General industrial equipment
• Military and defense applications

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count and orientation. Ensure compatibility with mating headers regarding keying options and stack height requirements. Check for any specific ordering suffixes that may alter contact plating or housing color. Confirm lead times and packaging quantities directly with authorized distributors as these details vary by region and supplier.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 24-position female receptacle with through-hole termination is required. The 2.00mm pitch suits dense board layouts while maintaining adequate spacing. Consider the operating temperature range and current rating for the specific application environment. Verify that the mating connector matches the Datamate J-Tek series specifications for proper alignment and engagement.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Datamate J-Tek family, known for its compact size and high durability. The series is widely used in harsh environments due to its resistance to mechanical stress and extreme temperatures. The M80-4102442 specifically provides a reliable interconnection solution for space-constrained designs requiring secure electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 24-position configuration, 2.00mm pitch, and through-hole mounting style. Verify that alternative components support the same current rating and temperature range. Cross-reference mating connectors to ensure mechanical and electrical compatibility before implementation.
