M80-4113401

Headers, Receptacles, Female Sockets Overview

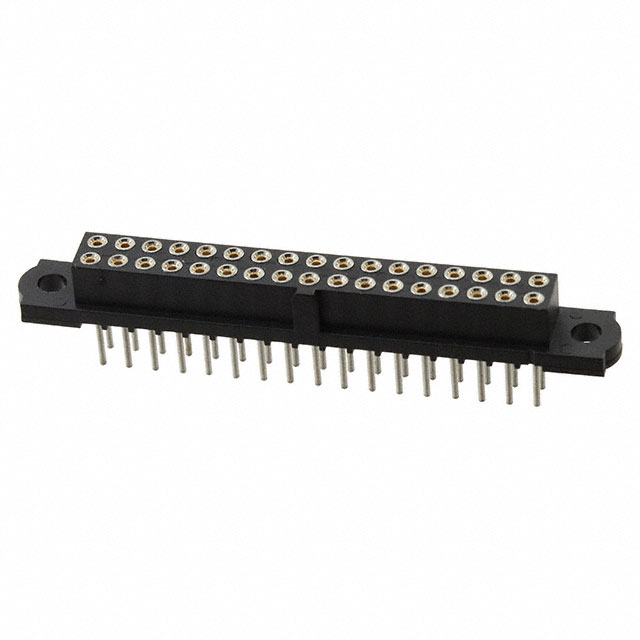

The M80-4113401 is a Harwin Datamate J-Tek board connector receptacle featuring 34 female contacts arranged in two rows. It utilizes a 2.00 mm pitch with through-hole solder terminals for PCB mounting. The housing is constructed from black glass-filled polyphenylene sulfide, providing high thermal stability and mechanical strength. Contact plating options include tin or gold finishes on beryllium copper bases to ensure reliable signal transmission. This straight-mount plug design offers a compact footprint suitable for dense electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• High-reliability rectangular connector system designed for demanding environments
• Mixed contact configuration allowing simultaneous signal and power routing
• Robust locking mechanism ensures secure mating against vibration
• Glass-filled insulator material provides superior heat resistance

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal transmission
• Automotive electronics subject to harsh environmental conditions
• Test and measurement instrumentation boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact plating finish required for your application, as tin and gold variants exist within this part family. Confirm that the selected variant matches the necessary current carrying capacity and environmental exposure requirements. Ensure compatibility with the corresponding male header components from the same Datamate series to maintain proper mating engagement and locking functionality.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, mixed-signal connection is needed in a constrained space. The 2.00 mm pitch allows for significant I/O density compared to larger pitch connectors. Consider the beryllium copper contact material for its excellent spring properties and fatigue resistance over repeated mating cycles. Evaluate the straight mounting orientation against panel mount alternatives based on spatial constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate J-Tek series, a widely recognized standard for high-reliability board-to-board and wire-to-board connections. The series is characterized by its small form factor and rugged construction. The M80-4113401 specifically represents a receptacle variant designed for vertical PCB insertion, serving as a critical interface point in modular electronic designs.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Cross-compatibility requires matching the 2.00 mm pitch, 34-contact count, and female socket orientation. Verify mechanical dimensions and locking mechanism type before substituting with generic equivalents.
