M80-4C10805F3-02-325-00-000

Headers, Receptacles, Female Sockets Overview

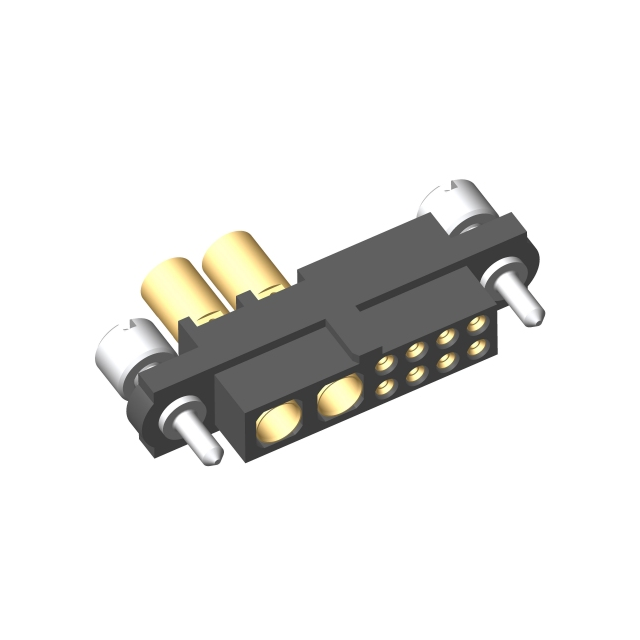

The M80-4C10805F3-02-325-00-000 is a Harwin board connector from the Mix Tek series, designed as a female plug with straight solder terminals. It features a locking mechanism and black insulator constructed from glass-filled polyphenylene sulphide. The contacts are made of beryllium copper with gold plating for mating surfaces and tin/lead termination finishes. Key electrical specifications include a contact resistance of 25 mΩ, insulation resistance of 100,000,000 Ω, and a durability rating of 500 cycles.

Headers, Receptacles, Female Sockets Feature Summary

• Mixed technology design accommodating varied contact configurations within a single assembly
• Locking mechanical feature ensures secure connection stability during operation
• Gold-plated contact surfaces provide reliable signal transmission and corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring mixed signal and power connections
• Test and measurement equipment interfaces
• Telecommunications hardware assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify RoHS compliance status carefully, as datasheet records indicate non-compliance for similar M80 variants while others show compliance. Confirm specific lot certifications against project requirements. Ensure ordering suffixes match exact pin count and termination style to avoid functional mismatches in mixed-technology applications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when mixed-technology connectivity is required within the Harwin M80 ecosystem. Evaluate the need for solder versus crimp terminals based on manufacturing processes. Consider the 500-cycle durability limit for application lifecycle planning. Verify that the straight plug form factor aligns with PCB layout constraints and mating housing dimensions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Mix Tek range, which combines different contact technologies in one connector system. It utilizes the standard M80 housing architecture, ensuring compatibility with other M80 series components. The designation indicates a specific configuration within the broader rectangular connector catalog, emphasizing modular design flexibility for complex electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain identical pin count, gender, and terminal type. Cross-reference with other M80 series female plugs if exact suffixes are unavailable. Ensure replacement parts preserve the mixed-technology capability and locking mechanism integrity for equivalent performance.
