M80-4S11442FD

Headers, Receptacles, Female Sockets Overview

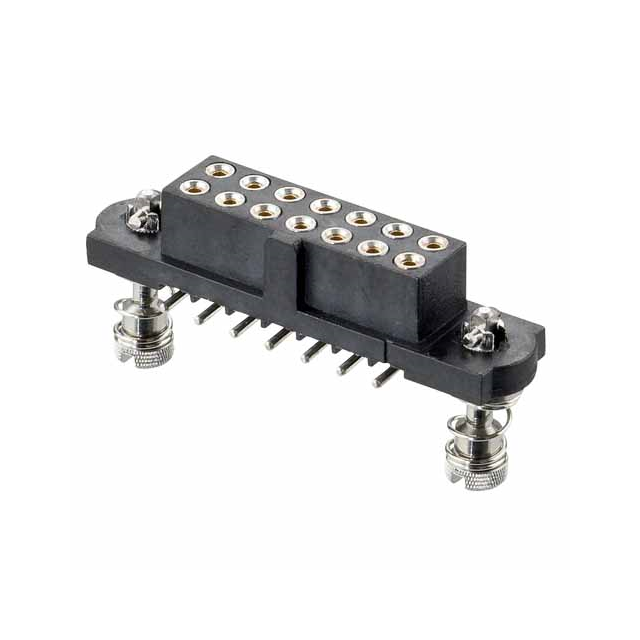

The M80-4S11442FD is a female receptacle connector from the Harwin Datamate J-Tek series. It features a double row, straight vertical surface mount design with 14 contacts (7+7). The component utilizes gold plating on contact areas and tin finish on terminations. It is designed for high-reliability applications requiring compact board-to-board connectivity.

Headers, Receptacles, Female Sockets Feature Summary

• Double row configuration for increased density
• Surface mount termination style
• Gold contact finish for reliability

Headers, Receptacles, Female Sockets Applications

• Embedded systems
• Power supply units
• Automotive solutions

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'FD' against the official Harwin datasheet to confirm exact pinout and termination details. Ensure compatibility with mating male headers from the same Datamate J-Tek series. Check for RoHS compliance status in the latest documentation before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this model for applications requiring a vertical surface mount interface with 14 positions. Consider the gold contact finish for corrosion resistance and low contact resistance requirements. Verify that the PCB footprint matches the specified double-row SMT layout.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate J-Tek series, known for high-performance connectivity in demanding environments. The M80 series offers robust mechanical locking and shielding options. This specific variant provides a compact solution for signal transmission in space-constrained designs.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific suffix combination. Cross-reference mating parts within the Datamate J-Tek family to ensure mechanical and electrical compatibility if sourcing alternatives.
