M80-4T10605F9-02-321-00-000

Headers, Receptacles, Female Sockets Overview

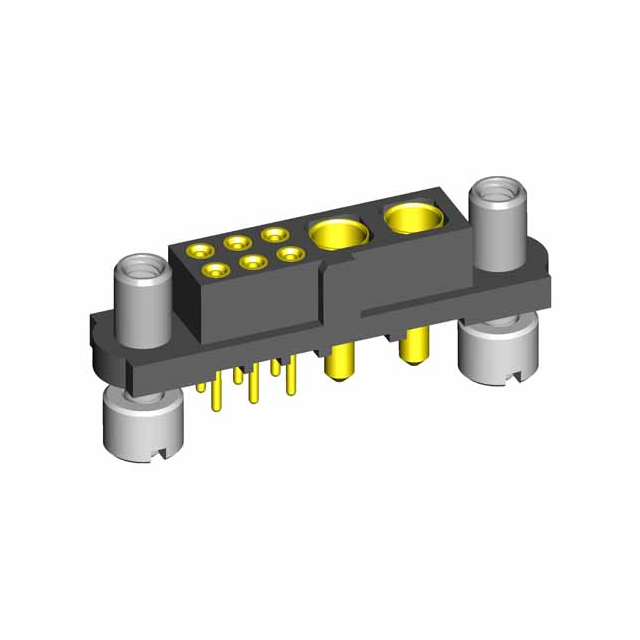

The M80-4T10605F9-02-321-00-000 is a Datamate Mix-Tek vertical board connector featuring six positions with two dedicated power contacts. It utilizes female sockets constructed from beryllium copper with gold plating for reliable signal and power transmission. The component employs a four-finger contact technology to ensure connection integrity without loss. Designed for through-board mounting, it supports mixed signal and power applications within the Harwin Datamate ecosystem.

Headers, Receptacles, Female Sockets Feature Summary

• Integrates high-reliability four-finger beryllium copper contact technology for secure connections
• Supports mixed signal and power transmission in a single compact housing
• Features gold-plated female sockets to maintain electrical integrity

Headers, Receptacles, Female Sockets Applications

• Vertical PCB interconnects requiring mixed signal and power
• High-reliability industrial equipment connections
• Compact electronic assemblies utilizing Datamate Mix-Tek systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin configuration and termination style. Ensure compatibility with mating male connectors within the Datamate series. Check for RoHS compliance status and REACH SVHC declarations relevant to your region before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when a vertical orientation is required for mixed signal and power routing. The six-position layout with two power contacts suits applications needing integrated power delivery alongside data lines. Confirm that the board space accommodates the vertical profile and that mating components match the female socket interface specifications.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Datamate Mix-Tek series, designed for high-density interconnects. The series combines signal and power capabilities in a robust rectangular connector format. The M80-4T10605F9 variant specifically addresses vertical mounting needs while maintaining the reliability standards associated with the broader Datamate product family.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Harwin documentation for verified substitute part numbers. Ensure any replacement maintains the same contact count, gender, and vertical mounting orientation. Verify that mating connectors are compatible with the Datamate Mix-Tek system specifications.
