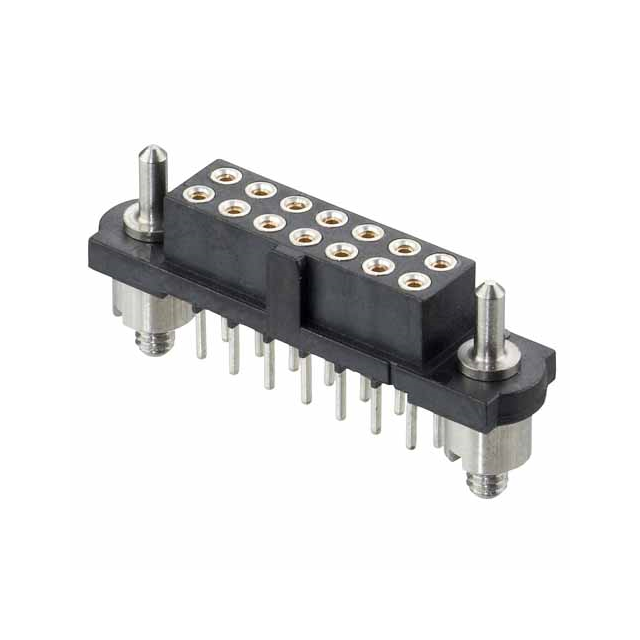

M80-4T10642F3

Headers, Receptacles, Female Sockets Overview

The M80-4T10642F3 is a board connector from the Datamate J-Tek series, designed for high-reliability signal transmission. It features a female contact configuration with straight through-hole solder terminals and a locking mechanism. The housing is constructed from black glass-filled polyphenylene sulphide (PPS). Contacts are made of beryllium copper with gold plating for mating surfaces and tin for termination. Key electrical parameters include a contact resistance of 25 mΩ and an insulation resistance of 100 MΩ. The component supports 500 mating cycles and utilizes a 2.00mm pitch.

Headers, Receptacles, Female Sockets Feature Summary

• High-reliability signal transmission capability conforming to British Standard 9525-F0033
• Locking mechanism ensures secure connection stability during operation
• Gold-plated contacts provide durable mating interfaces for repeated use

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment needing reliable signal paths
• Automotive electronics applications demanding high durability

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pin count, row configuration, and terminal type. Ensure compatibility with mating male connectors in the same Datamate J-Tek family. Check RoHS compliance status if required by project specifications. Confirm that the straight through-hole mounting style matches the PCB design requirements.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high reliability and locking features are critical for signal integrity. Consider the 2.00mm pitch and female socket configuration for system architecture. Evaluate the mechanical locking requirement against vibration environments. Compare against standard headers only if high-cycle durability and strain relief are necessary for the application.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate J-Tek M80 series, known for high-reliability interconnect solutions. The series offers various configurations including vertical and straight orientations. The M80-4T10642F3 specifically denotes a straight, through-board female connector with locking features, suitable for demanding industrial and automotive environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 2.00mm pitch, female orientation, and locking mechanism. Verify dimensional compatibility with existing PCB footprints and mating hardware. Cross-reference with other Harwin M80 series variants for equivalent electrical and mechanical performance.
