M80-4T10801F1-02-301-00-000

Headers, Receptacles, Female Sockets Overview

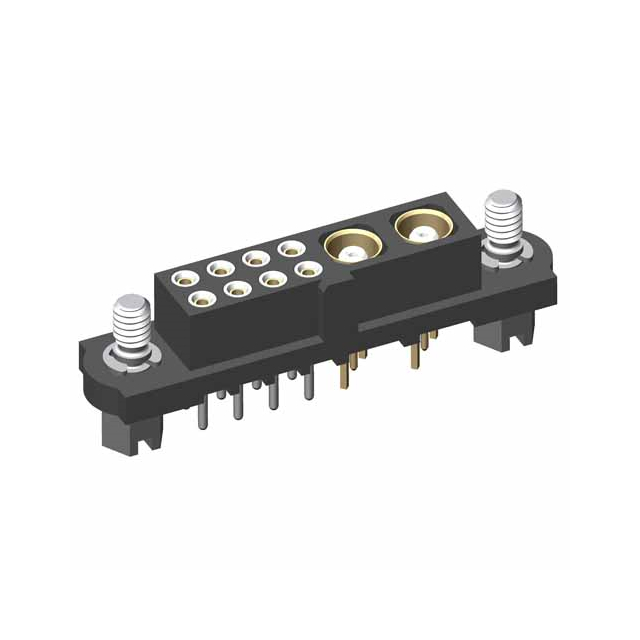

The M80-4T10801F1-02-301-00-000 is a Harwin board connector featuring 10 female contacts with straight solder terminals. It utilizes a locking plug design with a black glass-filled polyphenylene sulphide insulator. The contacts are made of beryllium copper, offering a resistance of 25 mΩ and durability for 500 cycles. Contact mating surfaces are gold-plated, while termination finishes vary by compliance variant. The housing measures 1.417 inches in length, 0.219 inches in width, and 0.205 inches in depth.

Headers, Receptacles, Female Sockets Feature Summary

• Locking jack-screw installation option ensures secure mechanical connection
• Mixed contact configuration supports diverse circuit requirements
• High insulation resistance of 100,000,000 Ω ensures electrical safety

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring robust board-to-board connections
• Test and measurement equipment needing reliable signal integrity
• Automotive electronics modules demanding high durability

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific RoHS compliance status and termination finish (Tin or Tin/Lead) against the official datasheet before procurement, as these attributes vary across the M80 series variants. Confirm that the jack-screw locking mechanism aligns with your assembly tooling requirements. Ensure the supplier provides documentation matching the exact part number suffix to guarantee correct contact plating and material specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a semi-custom solution with mixed contact types is required for space-constrained applications. The straight solder terminal design simplifies PCB layout compared to right-angle alternatives. Consider the 500-cycle durability rating for applications involving frequent mating cycles. Verify that the 10-contact count meets the signal and power distribution needs without excessive board real estate usage.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Datamate Mix-Tek family, designed for semi-custom interconnect solutions. The M80 series is known for its modular approach, allowing engineers to mix contact sizes and types within a single housing. This specific model represents a fixed 10-position variant, providing a standardized interface for applications where custom ordering lead times are prohibitive but semi-flexibility remains beneficial.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitute part numbers are confirmed for this specific semi-custom configuration. Due to the unique combination of contact count, locking mechanism, and mixed contact type, cross-referencing requires verifying identical mechanical dimensions and electrical ratings. Generic board connectors may not support the jack-screw locking feature or mixed contact architecture.
